ESMA s.r.l. products

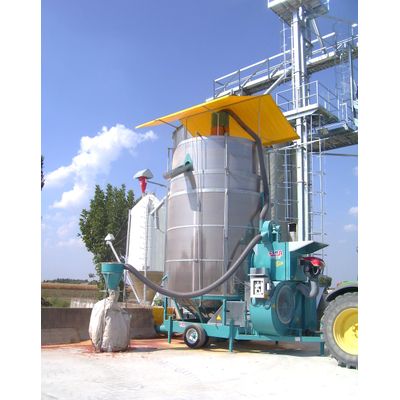

Heat exchanger or INDIRECT FLAME: The Esma grain dryer with heat exchanger is an indirect flame drying system which expels the combustion residues to the outside via a vent stack so that they do not come into contact with the cereal, thus conserving its organoleptic properties. Once dried, the cereal will maintain its freshly harvested characteristics and fragrance. We guarantee you a genuine, clean, environment-friendly end product, suited to all needs and compliant with all health and hygiene standards.

Capacity MAX m³ 8,24. Capacity MAX t 5,47. Capacity MIN t 4,1. RIELLO burner Model RL44. Fan - motor kw 5,5. Dust aspirator - motor kw 0,75. Mixer - motor kw 1,5. Central auger - motor kw 11. Loading auger - motor kw 3. Tank lt 160.

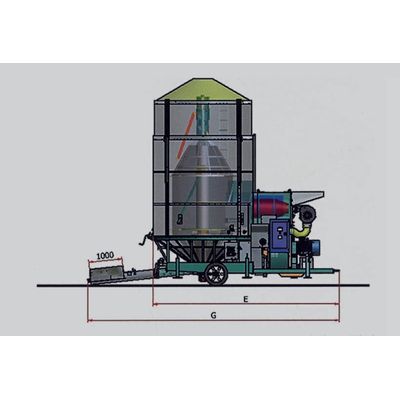

ESMA SMALL  ES100F. Capacity m3  14. Capacity t 10. Height during transport m  4.45. Height of cylinder  A m  4.45. Operating height  B m  4 Ql. Operating height with dust aspirator  C m 5.75. Height of outlet chute  D m 2.90. WIDTH m  2,50. Length  E m 4.93. Length with 2.60m. loading hopper F m  8.14. Lenght with loading auger  G m  730. Fan m3/h. 32.000. Burner Kcal/h 600.000. Output t/24h. 45 50. PTO input hp 45 50. Electric engine kw 22 22.
