K-Line Irrigation products

The tough one piece rotary molded K-Line pods which house the sprinklers are made of very strong impact and abrasion resistant UV-protected polyethylene that should last for years. The heavy duty skid plate on the bottom gives the pod a low center of gravity. The heavy duty construction is designed to withstand the rigors of being pulled across rough and uneven ground. The unique saddle quickly bolts into place with only two nuts to tighten down. Animal guards are an option

K-Line Irrigation`s New 4 Pod 1.5 acre kit is designed for the homeowner with a large garden or backyard parcel to irrigate. The kit comes with 4 tan colored pods, 250 feet of 32mm (approximate 1 1/4") tubing, and all the parts and components required to hook up to an 1 1/4" water supply. The manual includes an inside page of all components furnished with the kit and a highly informative step by step procedure to design and install the system. The back of the manual also provides sample designs to get you started on your own custom install. Most installers will find themselves up and running within 2 hours.

The specially formulated  polyethylene tubing is the key component to the system.  This tubing is made of linear low density polyethylene resins that make it very strong yet flexible when used in the K-Line system. This tubing can withstand the effects of abrasive soils, kinking, freezing, the damage from UV light, and the various stresses exerted on the tubing while moving from set to set. K-Line tubing is available in 32mm, 40mm, 45mm, and 50mm sizes. The tubing has green stripes and tick marks along the length of the tubing that help in identifying the size of the tubing at a glance and to assist in the installation process.

The K-Line G-Set Pod Irrigation system consists of a low maintenance solar rechargable battery powered controller that operates low power latch coils that in turn operate a 40mm valve. Two controllers are available, a set it and forget it independent controller, and a mesh controller that can be radio updated from a distance. Both controllers are fully programmable. The controllers are matched with a heavey duty resistant pod that is semi buried into the ground. The G-Set is a smarter alternative to other solid set irrigation systems. The system is capable of operating in many environments where terrain or field shape create issues for traditional irrigators. It can open up land once deemed waste land that can now be productive pasture. It can also work in conjunction with an existing pivot by irrigating the pivot corners.

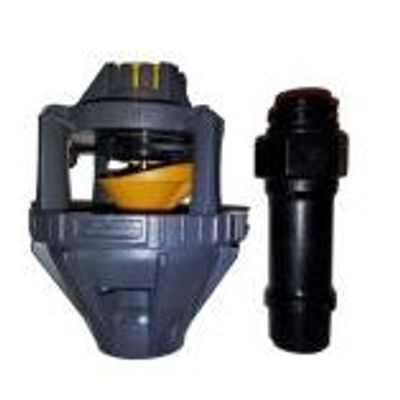

K-Line offers a choice of 5 NAAN durable sprinklers with application rates of 2.04 to 5.11 gpm and operating pressures of 35-55 psi. To connect to the tapping saddle choose the NAAN-ADAPTOR.

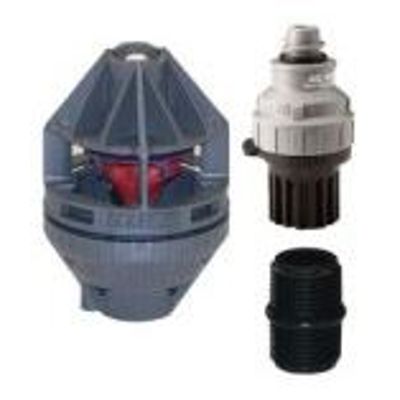

A choice of 5 Nelson nozzles allows for varied application rates of 1.64-5.47 gpm at 45-60 psi.  The Nelson sprinkler is available with pressure compensating sprinklers which results in very good uniformity in hilly applications.  This is a highly dependable rotary style sprinkler made from heavy duty plastics.  The key fact about the Windfighter is that it can accomplish greater uniformity in systems with wind interference that would affect the uniformity of most impact sprinklers. To connect to the tapping saddle choose the NELSON-ADAPTOR

A choice of 5 Nelson nozzles allows for varied application rates of 1.64-5.47 gpm at 45-60 psi. The Nelson sprinkler is available with pressure compensating sprinklers which results in very good uniformity in hilly applications. This is a highly dependable rotary style sprinkler made from heavy duty plastics.  The key fact about the Windfighter is that it can accomplish greater uniformity in systems with wind interference that would affect the uniformity of most impact sprinklers. When using the NELSON-MINI REG connect to the tapping saddle choose the NELSON-NIPPLE

The R33 Rotator is an innovation that saves money, saves time, and performs better than the 3/4” brass impact sprinklers it’s designed to replace. The R33 uses Nelson’s proven Rotator® technology to provide longer throw distance, fight the wind and deliver uniform coverage. While brass sprinklers are prone to damage, clogging, and theft, the R33 is easy to clean, easy to repair, and costs less. The R33LP is a low-pressure version of the R33. The pressure range of the R33 is 40-65 PSI (2.75-4.5 bar), while the R33LP is 25-50 PSI (1.75-3.5 bar).
