KJ Klimateknik A/S products

The ErgoMat range is constructed over a heavy-duty, stainless-steel framework to ensure maximum stability and durability. The water supply to the two drinker valves and the feed supply tube and adjustment mechanism for feed supply are also made of stainless steel.

The ErgoMat range is constructed over a heavy-duty, stainless-steel framework to ensure maximum stability and durability. The water supply to the two drinker valves and the feed supply tube and adjustment mechanism for feed supply are also made of stainless steel.

The ErgoMat range is constructed over a heavy-duty, stainless-steel framework to ensure maximum stability and durability. The water supply to the two drinker valves and the feed supply tube and adjustment mechanism for feed supply are also made of stainless steel.  The feed container is produced from heavy-duty, top quality plastic which retains its flexibility – even after 10 years. The container  cannot be damaged by the pigs. The trough is produced from corrosion and acid resistant polymer concrete which is extremely durable. The broad edge and practical depth minimizes feed wastage. This has been tested by the Danish SEGES pig research centre. This high quality enables us to provide a 5 year guarantee for ErgoMat automatic feeders.

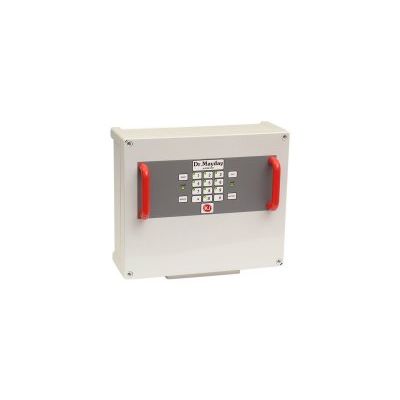

Dr. Mayday has approximately the same functions as Dr. Sherlock but does not have a digital display. The system can monitor that ventilation operates at the optimum in up to 10 housing units. The integrated audio computer provides an acoustic alarm message that describes the nature of the problem. The fault message is simultaneously sent to up to 5 mobile telephones. Initially, Dr. Mayday can only be applied with control systems from KJ Klimateknik. The system is available in both GSM and telephone network models.

Dr. Sherlock is our Rolls-Royce alarm system model for professional livestock production. The user friendly monitor with digital display greatly simplifies operation. This system can monitor that ventilation is operated at the optimum in up to 10 housing units. The integrated audio computer provides an acoustic alarm message that describes the nature of the problem. The fault message is simultaneously sent to up to 5 mobile telephones. Dr. Sherlock is available in both GSM and telephone network models and can be installed in the majority of ventilation and monitoring system brands. Please request further information.

Alarm supervision. 10 analog inputs for temperature sensors + one for outdoor temperature. High and low temperature alarm + alarm by unacceptable alterations. Unwanted alarms caused by high outside temperature can be avoided safely. RS 485-interface. Local alarm (siren) and function for alarm calls can be activated individually on each input

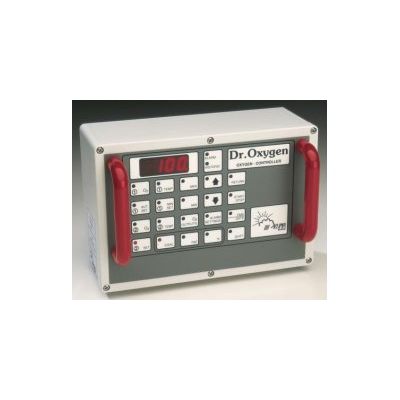

Measuring of oxygen tension and temperature on 2 sites. Shows oxygen tension in mg/l, % saturation and IDEAL. Controls supply of oxygen in the inlet on the basis of the requirement at the outlet. Build-in datalogger - data can be transferred to a personal computer. Communication-port for remote control by PC Professor Partyline, optionally through telephone using Dr.Bell

Control of room temperature. Control of fan-speed. Two output control signals for damper motors. Automatic fan stop. High quality polycarbonate-housing sealed to IP 65. Reduced control signal triggered by lower outside temperature

Position controlled by 0-10V control signal or RS485. Easy installation of wire for pulling dampers and inlet valves. Emergency opening by the lack of control signal. Control signal could be missing due to faulty cables, power-failure or faulty controller unit. Works on 12 VDC so its able to function during power-failure. Sealed to IP65.

Position controlled by 0-10V control signal or RS485. Easy installation of wire for pulling dampers and inlet valves. Emergency opening by the lack of control signal. Control signal could be missing due to faulty cables, power-failure or faulty controller unit. Works on 12 VDC so its able to function during power-failure. Sealed to IP65.
