Konrad Forsttechnik GmbH products

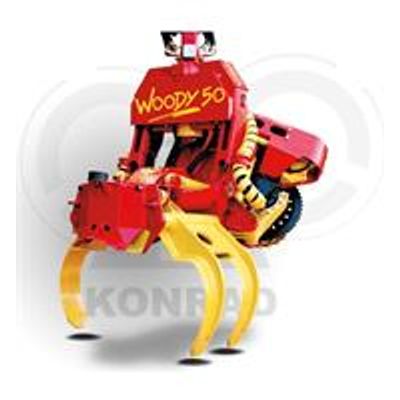

The aggregate WOODY is ideal in the altering use of harvester or processor works, and is used also successfully as pure harvester aggregate on harvesting machines.

A Quantum Step in Mobility and Flexibility. The new innovation Highlander is a high-performance harvester for middle and strong sized timber. In normal harvester terrain, the HIGHLANDER can move with special maneuverability. In steep and extremely diffi cult terrain, the machine reaches an enourmous terrain flexibility due to the syncronised step and drive movement. The HIGHLANDER offers more than the climbing ability of a trucked machine and the advantages of a wheel driven machine.

Max. felling diameter : 65. Max. delimbing diameter : 8-60 cm. Max. opening distance of the grapple : 125 cm. Delimb feed strength : 30 - 37 kN . Recommended engine power : 0 - 5 m/sec. empf. Antriebsleistung : 140 HP. Hydraulic system : 300-350bar;220l/min. Bar saw feed rate : 40 m/sec. Rotator : integrated rotator (endless). Machine control system : KonradMCS3.0. Weight : 1.350 kg.

With the new radio controlled skyline crane Liftliner 4000 it is possible to operate the functions “load up/down” and „moving the crane“ at the same time. Therefore one can work very efficient and careful when thinning the forest, and also it is possible, to place the trees exactly on the desired spot at the offloading point. Because of the separate winch for the load, the mainline cable is fixed on the carriage and has the duty to pull the carriage. Therefore the carriage without clamps Liftliner 4000 works without wear on the skyline and mainline.

The ground carriage Pully is characterized by short assembly times, possibility of use in swamps, a broad spectrum of use, terrain independence and simple handling.

Gross weight less than 26 to fuel saving technic, compact constraction, fast and easy rigging up, ergonomic and safe workplace.

Skyline cable: 600m / 20mm comp. Mainline cable: 650m / 12mm comp. Mainline winch: 40kN / 5 (8) m/sec. Crane lifting force: 220 kNm. Turning force: 42 kNm. Tower height/crane reach: 13,5 m / 9,1 m. Basic unit/power: MAN TGS 33.400 6x4 BB (400 HP) or MAN TGS 33.440 6x6 BB (440 HP).

Pulling force / max. cable speed : 50kN / 5 (8) m/s. Crane : KFT MT24. Lifting torque : 220kNm. Swing torque : 42kNm. Reach : 9,1m. Tower height : 14,2m. Transport dimensions :  Length : 13,18. Width : 2,55. Height : 3,99. Carrier truck : MBArocsAK4142 8x6.
