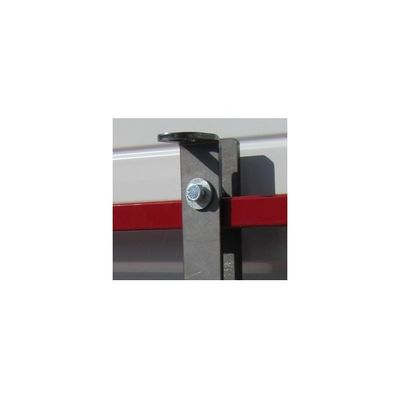

The Feeder Bracket can be added to the end of our larger feeder ends for extra added heavy duty support when connecting Panels and Walk– Through Gates.  The bracket can be turned so the tabs point out  either way.  The bracket can be mounted on the front or the back of the feeder end by sliding a Drop Rod through the tube on the feeder end, and the slots on the backside  of the bracket. Then pin the panel or gate to the tabs on the Feeder Bracket.

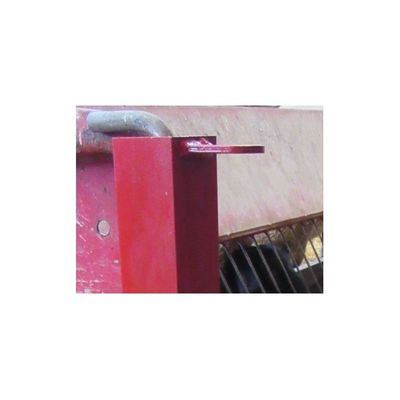

Make dividing a large pen into a smaller pen easy by using the Gate Bracket.  The Gate Bracket can be added anywhere along the length of our panels to connect other panels and/or walk-through gates. (Gate Bracket for Horizontal Panels is pictured—Gate Bracket for Vertical Rod Panels is also available.)  The bracket is made up of a flat metal strap as the back and a metal strap with tabs as the front and secures onto the panel with four bolts. Hardware is included with the Gate Bracket.  The front piece, the metal strap with tabs, is sold as an individual piece to be used as a Wall Bracket to bolt onto your barn wall.  The Wall Bracket can be used to pin panels and gates to barn walls instead of using eye screws.  Hardware is not included with Wall Bracket.

Our standard, most basic panel made with 1” square, 16-gauge tubing and feature radius corners for added safety.  Panels have 10” long,   radius cornered feet. 40” tall panels have 6 horizontal bars, 48” tall panels have 7 horizontal bars.  A vertical support is added on panels  measuring 7 foot in length and greater.

All of our equipment items are sold with a set amount of our standard 1/2” x 36” long Zinc Plated Drop Rods included in the price however, extra Drop Rods can be purchased individually or in bundles of 10 rods.  A few select items are sold with 1/2” x 52” extra long Zinc Plated Drop Rods and these can also be purchased individually.  In addition, 3/8” x 36” long Zinc Plated Drop Rods are available if you have other equipment needing a smaller diameter rod.

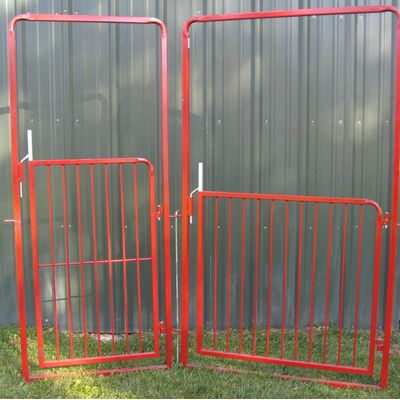

Gates utilize 1” square, 16-gauge tubing and features radius corners for added safety. Rods are 3/8” diameter and welded on 3” centers. Gates are in a 1 1/4” square, 14 gauge tube frame measuring 77” tall. Gates are available in two heights, 40” or 48” tall, and a horizontal support rod is put on all gates at 24” off of the ground for added support.  A great versatile choice for penning lambs, goats, and hogs.

Our standard, most basic gate is made with 1” square, 16-gauge tubing and features radius corners for added safety. Gates are in a 1 1/4” square, 14 gauge tube frame measuring 77” tall. Gates are available in two heights with the 40” tall gates having six bars; the taller 48” gates having seven bars.

The Two-Sided Hay & Grain Feeder feed sheep from both sides. The feeder is 30″ wide, has adjustable legs, and can be adjusted so the top of the pan is 10″ off the ground up to 30″ high. They are available in three standard lengths and can be Kustom built. It has a 6″, 18 gauge U.S. galvanized pan in bottom of feeder. Hay panel has a solid top to reduce hay in fleece and has rods on 3″ centers to reduce hay waste. The 10ft. feeder will feed approximately 20 ewes.

This sturdy and stable feeder comes in two pan widths: 10” and 15”.  They are easy to move around and are very economical grain feeders.  The 10” feeder has an A-Frame made from 1” square tubing with a base of 29” and the top of the pan is 15” high from the ground—ideal for creep feeding lambs and goats.  The 10” pan and support bar is narrow enough to help prevent goats from jumping in the feed pan. The 15” feeder has an A-Frame made from 1 1/4” square tubing with a base of 39” and the top of the pan is 18” high from the ground—ideal for feeding lambs and ewes.  Pans are 18-gauge U.S. galvanized steel.  Ship most economically in pairs.

This stand is ideal for lambs/kids and smaller sheep and goats.  This stand is designed to hold an animal up to about 250 pounds.  The stand has adjustable legs, can be set up square or at an angle and when finished, it folds up flat to carry and for easy transport.  Head piece is included in price and is zinc plated.
