One-piece headstock - high strength linkages between headstock and frame - reinforced beam - sheath mounted skimmers adjustable in three dimensions - complete range of plough bodies - 14` or 16` working widths - a range of depth wheels (sizes, steel or rubber, position) - simplified offsetting with pre-set positions for different tyre spacings - instant angling adjustment by turnhandle - Non-Stop Hydraulic safety - long life wearing parts - many additional options.

One-piece headstock - high strength linkages between headstock and frame - reinforced beam - sheath mounted skimmers adjustable in three dimensions - complete range of plough bodies - multiple working widths - a range of depth wheels (sizes, steel or rubber, position) - combined offsetting / angling - Non-Stop Hydraulic safety - long life wearing parts - many additional options.

The heavy weight of the 125 square beam improves soil engagement and ensures regular working depth – The point to point distance can be adjusted to adapt to the working conditions. In the two body version, this adjustment enables loosening the soil of the tractor wheel tracks – Easy and economical maintenance thanks to the removable guard located on the front of the leg – The various models of points provide versatility of use. The fast removal point (except for the drainage mole) facilitates maintenance work.

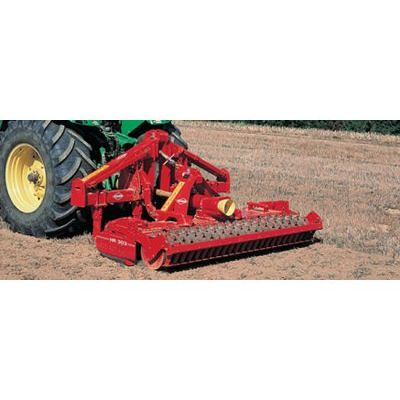

Soil loosener can be combined for work with power harrows or power tillers or solo with a roller - chassis of triangular design for an excellent weight/robustness ratio - Central working depth adjustment - rear offset of only 45 cm - symmetrical shares with special angles to evenly break up soil and lift up over the whole working width - Shearbolt safety.

The DOMINATOR Primary Tillage System is changing fall tillage. This exciting new concept eliminates stalk shredding and extra seed bed preparation trips. By managing residue in the fall and leaving a more level fall seed bed condition, the DOMINATOR sets the stage for fast efficient spring seedbed trips and maximum yields.

Stubble cultivator with independent discs, the OPTIMER+ is an ideal tool for shallow stubble cultivation at high speed. It facilitates forced emergence of weeds and volunteer seeds, decomposition of organic matter and allows maintaining maximum soil humidity. Its versatility also enables performing secondary tillage in order to obtain a good seedbed. The high under beam clearance (the highest on the market) pushes back the limits of use in residues and plant cover. The tool is fitted with hubs lubricated for life to reduce maintenance time. For work from 3 to 5 cm, favour small notched discs and large notched discs for more intensive work. Optimize your seeding work with the SH or distribution head for front hopper (TF 1500). The choice of roller T-Ring, T-Liner or Packliner allows adapting packing to the soil types.

In sizes from 18` to 34`, the Kuhn Kruase 7300 Flex Wing Tandem Disc Harrow offers a wide range of standard and optional equipment choices to match the specific tillage needs of your farm. Kuhn Krause 7300 Rock-Flex model discs feature C-Flex type bearing arms to `flex` over stones and other obstacles. The 7300 cuts, sizes, and mixes residue into the soil for faster breakdown and earlier soil warm-up. Soil and residue are mixed thoroughly by the 22` full concavity disc blades enhancing soil tilth in the root zone. The 7300 features a 17 degree front and rear gang angle. The 17 degree gang angles give the 7300 unmatched performance for residue sizing, soil mixing, herbicide incorporation and field finish while reducing draft and compaction. Choose from the Class l Seed Bed Finishing Model 7300 with narrow 7-3/4` blade spacing or the Class ll All-Purpose Model 7300 with wide 9-1/8` blade spacing.

The TF 1512 front hopper completes KUHN’s range of front hoppers. It can be coupled to mechanical and pneumatic seed drills, precision seed drills and tillage machines. It’s the versatile seeding solution: one single hopper for seeding, fertilisation and planting cover crops.

The 5200 PRO Series grain drills are available in 15` or 20` sizes in 3-point mounts to meet your farm requirements. These drills have seeding capability for conventional or minimum-till with the PRO openers on 6", 7 ½" or 10" spacing; minimum-till or no-till with the HR PRO openers on 7 ½" or 10" spacing. Openers are also arranged with a 6 ½" stagger for excellent soil and residue flow. Kuhn Krause grain drills provide front drive wheel systems and easy-to-adjust transmissions for a wide range of seeding rates. For 3-point models, two 11L x 15" tires both gauge and drive the drill.

The 5200 PRO Series grain drills are available in 15` or 20` sizes in 3-point mounts to meet your farm requirements. These drills have seeding capability for conventional or minimum-till with the PRO openers on 6", 7 ½" or 10" spacing; minimum-till or no-till with the HR PRO openers on 7 ½" or 10" spacing. Openers are also arranged with a 6 ½" stagger for excellent soil and residue flow. Kuhn Krause grain drills provide front drive wheel systems and easy-to-adjust transmissions for a wide range of seeding rates. For 3-point models, two 11L x 15" tires both gauge and drive the drill.
