Les Machineries Pronovost inc. products

Hydraulic Brake Kit: Optional hydraulic brake kit. Including: Change of tandems, disc brakes, hydraulic lines and hoses for connection to the outlet «Hydraulic trailer brakes» of the tractor

Shape of the bales : Round, square or rectangular. Overall length at work : 153` / 3886 mm. Overall length for transportation : 176` / 4470 mm. Overall width at work : 112` / 2845 mm. Overall width for transportation : 100` / 2540 mm. Overall height for transportation : 93` / 2362 mm.

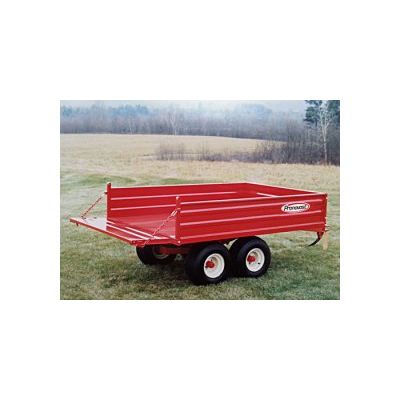

Gross vehicle weight rating: 1.5 tons. Interior box dimensions: 50 1/2` x 69 1/2`. Bed thickness: 12G. Side panels: 12` x 12G. Front / back panel: 12 1/4` x 12G. Removable panels: 4. Rear panel opening: From top or bottom. Platform height: 22`. Overall length: 106`. Overall width: 54`. Overall height: 36`. Free height at maximum tilt: 10`. Total height at maximum tilt: 72`. Tread width c/c: 36 1/4`. Dumping angle (back): 47°. Axles Tandem Hubs: 4 bolts. Hub capacity: 1000 lbs. Spindles: 1 1/4`. Wheels: 4. Wheels dimensions: 8.5` x 8`. Included tires: 12 x 14 x 8`. Hitch : clevis/swivel: Included. Jack: Included. Cylinder(s): 1 double acting. Total weight (approx.): 625 lbs / 284 kg.

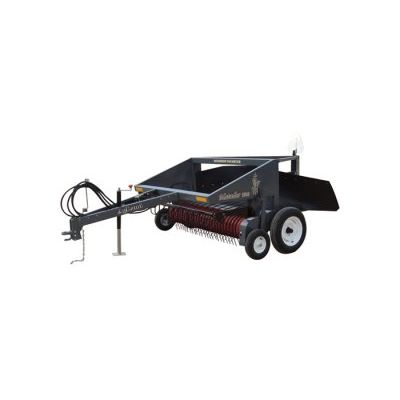

HP recommended: 50 HP PTO minimum. Overall width: 102` to 104` / 259 cm to 264 cm. Overall length: 187` / 475 cm with rear hitch - 175` / 444 cm without rear hitch. Operating speed: 46` / 117 cm with pickup lowered - 48` / 122 cm with pickup raised. Hydraulic outlets required: Two double acting outlets. Tires: 5.90 x 15. Operating speed: Up to 10 mi/h / 16 km/h. Weight: 1350 lbs / 613 kg.

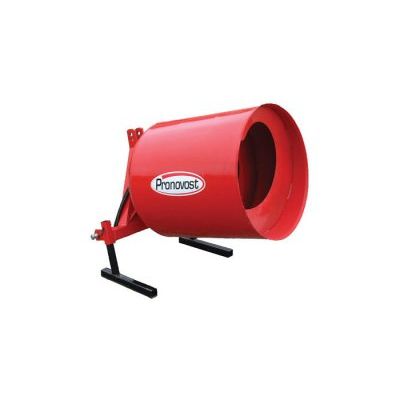

Tub dimension: 31` diameter x 36` long. Tub support: 2 1/8` diameter shaft and 2 bearings. Hitch category: 1 & 2. Tub rotation speed: Between 24 and 30 RPM. Loading height: Approx. 24`. Total tub capacity: 14.8 cu. ft.. Cement mixture capacity` 1 to 1.5 bags. Cushion valve: Standard. Total empty weight: 355 lbs / 161 kg.

The P-503 dump body, developed by Pronovost, is engineered specifically for effective snow removal and public works tasks. With a robust capacity of 1.5 tons, it is built to handle significant loads with ease. The interior dimensions of 50 ½ inches by 69 ½ inches ensure ample space for various materials, making it a versatile choice for various heavy-duty applications. This model is equipped with options like the hydraulic pump PHM-3003 and a battery holder, tailored for enhanced functionality in demanding environments. While its design focuses on durability and efficiency, specifications may be subject to alterations as technological innovations advance. Designed without video support, the P-503 dump body exemplifies a practical solution for high-impact industrial needs, reflecting Pronovost`s commitment to quality in farm equipment and public work services.

The P-505 is a robust piece of equipment designed for effective snow removal, ideal for homeowners and public works use. It boasts a capacity of 2.5 tons, with generous interior dimensions measuring 60 by 94 inches, making it adaptable for various snow clearing needs. The equipment can be equipped with a hydraulic pump, a battery holder, and comes with various tire options, including models P-505T and P-505M. The design allows for efficient storage and operation across challenging terrains. These features collectively enhance the versatility and functionality of the P-505 snow removal unit, ensuring a reliable solution for efficient performance during winter months. Adaptations and specifications may evolve over time to meet emerging industry requirements and technology advancements.

The P-509-60 model is part of Pronovost`s range of snow removal equipment, known for its robust performance in handling substantial workloads. With a capacity of 4 tons and interior dimensions measuring 71 inches by 105 inches, the P-509-60 is engineered for efficiency in public works and residential snow clearing. It provides options for customization to meet diverse requirements, including a hydraulic pump (P-511-PHEP), tire configurations, and a central unloading hatch (P-516G). It is designed to perform at speeds up to 25 MPH with 11L15F1 (D) tires, though specifics may vary as design and specifications are subject to change. The device is constructed to withstand rigorous use, demonstrating durability in demanding environments.

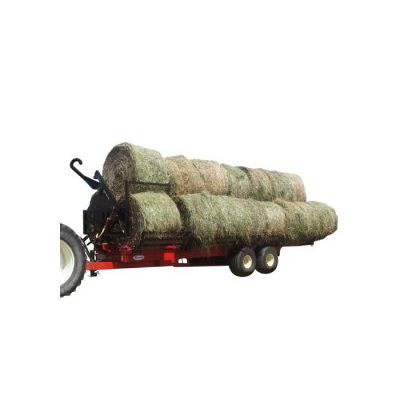

The Pronovost P-6810 and P-6810M bale loaders are specifically engineered for effective handling and loading of agricultural bales. With the capability to manage bales ranging in diameter from 48 inches to 66 inches, these loaders are versatile solutions for tasks related to snow removal, public works, and other heavy-duty agricultural contexts. These models accommodate bale weights up to 2500 lbs (1134 kg), and a specialized third-row loader, the P-6891TR, can handle up to 1500 lbs (680 kg), ensuring broad operational flexibility. Loaders include optional features for electrical conversion suitable for tractors with closed hydraulic circuits and offer a supplementary oil outlet. An optional hydraulic brake kit and hydraulic jack enhance functionality and safety during operation. It's important to ensure the selected bale handler model and tires do not exceed the vehicle's GVWR. Key specifications of the design incorporate options for increased bale handling capabilities up to 6-foot diameter, indicative of the loaders' adaptability to varied agricultural demands.
