Metalcraft products

Ejector Scrapers

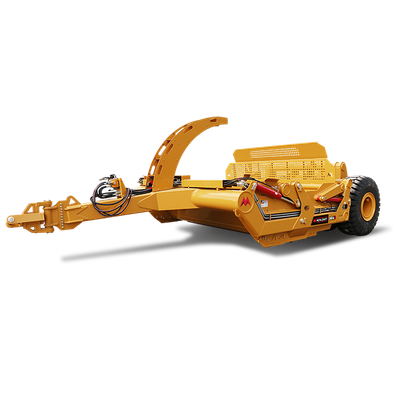

Metalcraft - Ejector Scraper for Earthmoving and Grading

The 2016E is engineered to withstand the rigorous demands of daily bulk earthmoving while offering features tailored for precise finish grading. With a 16-foot cutting width and a heaped capacity of 20 cubic yards (15.3 cubic meters), it serves as a versatile tool for various earthmoving tasks. This machine incorporates innovative features like 3D/GPS machine control for creating precision slopes and nylon block ejector guides for enhanced reliability over traditional steel rollers. The design ensures quick and efficient loading due to its low angle of attack. Robust hydraulics featuring zinc-coated flat-face o-ring couplers and all-steel cylinder components enhance productivity, while built-in shut-off valves on the cylinders provide an additional layer of safety during maintenance. The 2016E also boasts specifications that cater to high-power requirements, making it suitable for heavy-duty applications.

Metalcraft - Ejector Scraper for Heavy-Duty Earthmoving

The 2814E Ejector Scraper is designed for heavy-duty construction tasks and stands out due to its rugged structural design, capable of handling demanding earthmoving conditions throughout its long service life. The scraper features a rear lift control allowing the pan to be lowered level with the ground for efficient material handling. It includes an ejector system that extends beyond the front edge of the scraper to eliminate carry-back, ensuring optimal efficiency during loading and unloading cycles. This model promotes even load transportation, offering a smoother operation with minimized sway. It utilizes commonly available blades which are cost-effective and readily obtainable. The scraper's ejector guides feature a nylon block and simple track design, avoiding the complications associated with steel rollers. For added safety during maintenance, built-in shut-off valves are included on cylinders. Specifications include a capacity of 28 cubic yards (21.4 cubic meters) and optional containerization for transport.

Pivot Dump Scrapers

Metalcraft - Pivot Dump Scraper

The 2212D Pivot Dump Scraper by Metalcraft is engineered to excel in precision land leveling projects. This robust machine addresses common complaints from earthmovers by eliminating flexible side sheets, hinges in the gate, and tubes around the wheels. The design incorporates a spacious 71-inch gate opening for effortless unloading of materials. It allows for optional 26.5 x 25 tires, enhancing flotation in wet conditions. The scraper is built to enable tandem operation to boost single power unit capacity. Additionally, it features built-in shut-off valves on the cylinders, providing extra safety during maintenance. It boasts a capacity of 22 cubic yards and requires a minimum of 450 HP. The 2212D model also includes a bolt-on rear hitch and a safety lockout feature for increased reliability during operation. Its dimensions are approximately 13 feet 11 ¾ inches wide by 29 feet 1 inch long and 9 feet 7 inches high, with an overall weight of about 27,000 pounds.

Metalcraft - Pivot Dump Scraper

Metalcraft's 2614D pivot dump scraper stands out as the largest scraper of its kind, designed to optimize earthmoving productivity with its 26 cubic yard (19.9 cubic meter) capacity. The 70-inch gate opening allows for efficient unloading of material, while the absence of a hinge gate and flexible side sheets minimizes wear points and potential breakdowns. Designed to handle tough job site conditions, the scraper features a wheel carriage that repels material buildup, a bolt-on rear hitch accommodating all hitch types, and robust hydraulic cylinder components crafted from all steel and zinc-coated flat-face o-ring couplers. The added rack height provides spill-over protection, securing rear hydraulics from debris damage. It can be tandem-pulled to increase capacity using a single power unit, making it highly versatile and capable of supporting power units exceeding 450 HP (331 kW). The robust design and optional containerization make it suitable for large-scale operations and transport.

Land Leveling & Grading

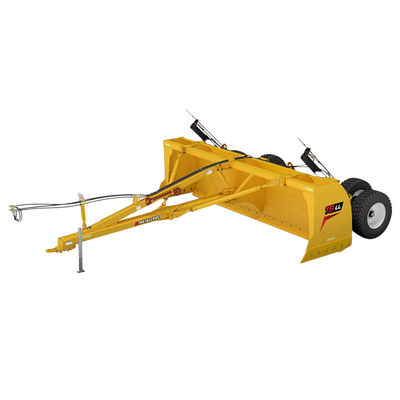

Metalcraft - Heavy-Duty Box Land Levelers

Metalcraft's heavy-duty box scrapers are highly effective in the construction and agricultural industry. Developed to perform well in maintaining haul roads, precision leveling, and field drainage, these land levelers provide reliable and efficient performance. Each model is equipped with a folding hitch pole, allowing it to comply with legal road width restrictions during transportation between job sites. Additionally, the walking back axles on all models provide stability for the blade at various angles, ensuring consistent performance. These machines feature a rear hitch option for towing additional implements and a standard tilt functionality that offers 30 inches (762 mm) of lift at the cutting edge, making them ideal for handling slopes and crowning. The dual-mast GPS mounting locations facilitate final precision grading, while highly visible blade height indicators ensure accuracy. Available options include various blade types such as curved grader blades, straight flat cutting edges, and serrated cutting edges. The depth level gauges, mechanical slope meter, and GPS readiness contribute to the overall efficiency and functionality of these land levelers, making them a dependable choice for numerous applications.
