Rain-Flo Irrigation, LLC. products

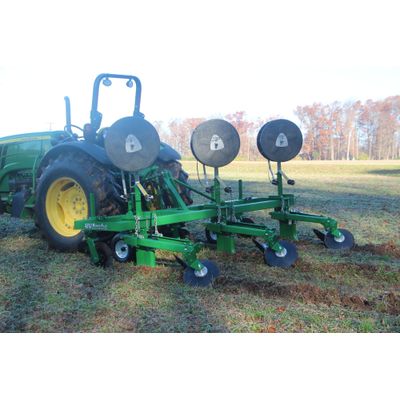

Heavy Duty Subsurface Drip Applicator w/ Category II & III 3- Point Hitch. Depth Adjustable From 4″ – 18″. 6” x 6” Toolbar for 30”- 68” Row Centers. Shear Bolt For Rocky Soil. Convenient Operator Platform. Drip Attachment Has Adjustable On-Demand Brake. Replaceable Shank Tooth & Shin Guard. Replaceable Hardened Wear Plate on Side & Bottom of Shank. 2” ID Stainless Steel Down Tube for 5/8” – 1-1/8” Tape. Roller Guides to Prevent Tape Twist. Spare Roll Carrier to Hold 9 Rolls. 45º Spool Holder For Fast & Easy Loading.

Heavy Duty SDI Applicator w/ Category II 3- Point Hitch. Depth Adjustable From Surface – 10″. 4”x 4”x 12′ Toolbar for 30”- 68” Row Centers. 2” ID Stainless Steel Down Tube for 5/8” – 1-1/8 ” Tape. Shear Bolt For Rocky Soil. Drip Attachment Has Adjustable On-Demand Brake. Replaceable Shank Tooth. Roller Guides To Prevent Tape Twist.

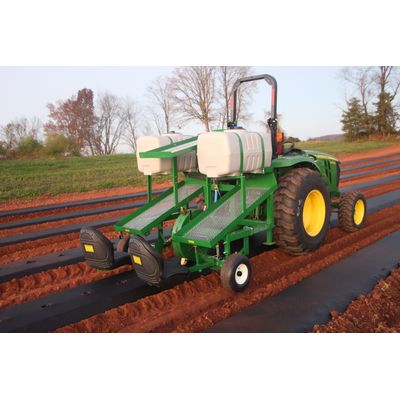

The most versatile water wheel planter for planting vegetables into plastic mulch!. Recommended Tractor Size; 50-70 HP FWD. Field Ready w/ One Planting Wheel. Plants Bare Roots, Pots, & Plugs. Capability of 8″ – 36″ Row Spacing & One to Four Planting Wheels (Standard). Two 80 Gallon Tanks. Up to 25 Tray Carrying Capacity. Will Plant 60” Row Spacing (Minimum). Quick Change Planting Wheel Setup. Easy Adjustment On Seat & Foot Rest For Optimum Comfort. Large Tires w/ Highway Bearings. Side Valve for Washing Hands. Galvanized Expanded Metal Trays.

The most versatile water wheel planter for planting vegetables into plastic mulch!. Compact Water Wheel Transplanter w/ Category I and II 3- Point Hitch. Recommended Tractor Size: 40 – 60 HP. Field Ready w/ One Planting Wheel. Plants Bare Roots, Pots, & Plugs. Capability Of 8” – 16” Row Spacing & One Or Two Planting Wheels (Standard). Two 50 Gallon Water Tanks. 10 Tray Capacity; 15 w/ Top Tray. Will plant 62” Row Spacing (Minimum). Quick Change Planting Wheel Setup. New Design Seat Adjustment; Easy On the Go Adjustment!. Galvanized Expanded Metal Trays.

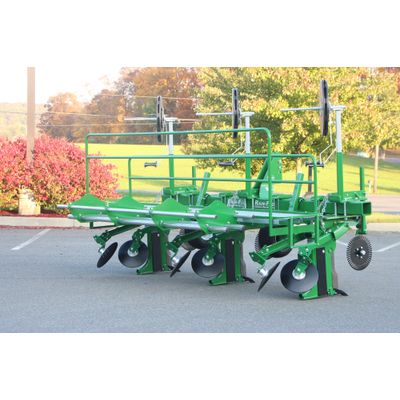

Standard Features: 60” Row Centers w/ 4’ Plastic, 80 HP FWD Minimum Tractor Size. Category II, 3-Point Hitch. Adjustable Bed Height; 4″ or 8″. Lays 48″ Plastic Only. Automatically Starts Plastic Film. Manual Plastic & Drip Tape Cutters. On The Go Plastic Roll Change. On The Go Cover Disk Adjustment. Adjustable Crowned Or Flat Bed Top. Adjustable Brake Tension On Plastic Rollers. Adjustable Row Markers. Operator Seat. Replaceable, Reversible Plow Share Blades. UHMW (replaceable) Poly Lined Bed Press.

Standard Features: 64” Row Centers w/ 4’ Plastic; 80 HP FWD Minimum Tractor Size. Category II, 3-Point Hitch. Adjustable Plastic Width From 3′ – 5′. Adjustable Bed Height From 5” – 9”. Adjustable Brake Tension on Plastic Roll Carriers. Bed Press has Adjustable Side Press Plates. Operator Seat. Adjustable Row Markers. Replaceable, Reversible Plow Share Blades. UHMW (replaceable) Plastic Lined Bed Press. Spring Loaded Shovels On Side Helps Loosen Soil For Cover Disk.

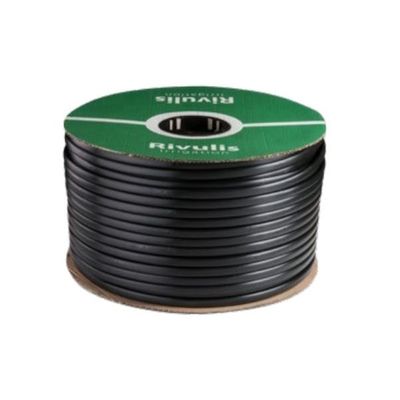

Pressure compensating for precise and uniform flow rates along entire length of the lateral and in undulating terrain. Allows for longer run lengths. Select from several flow rates, diameters and spacings to match the soil infiltration rate. Wide range of pressure regulation from 7 to 51 psi maintains a uniform flow rate regardless of the water pressure to optimize irrigation and maximize crop yields.

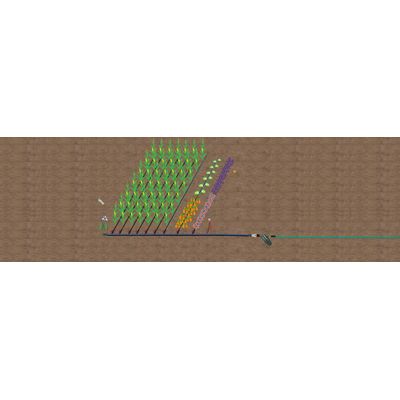

SDI is more than an irrigation method for row crops, it’s a management tool that allows growers to apply the precise amount of water and nutrients required directly to the root zone during the plant’s critical growth stages. Water and nutrients are also used more efficiently so input costs are reduced while increasing yields. Driplines are buried 8-15” below the soil surface and spaced 30-60” apart enabling water and fertilizer to easily reach each plant’s root zone. When properly maintained, a high quality drip system can last up to 20 years or more.

250’ 1” head line [Main]. Garden hose adapter. 1” Filter & adapter. 1” Pressure regulator. Stake w/ gauge. End plug for header line. 5 – 1” S.S. clamps. 3,000’ 10 Mil drip line. 50 dripline connectors w/ shut-off valve. Hole punch tool. 50 Drip line end sleeves. 10 Drip line repair couplings. 10 goof plugs.

100’ ¾” head line [Main]. Garden hose adapter. ¾” Filter & adapter. ¾” Pressure regulator. Stake w/ gauge. End plug for header line. 10 goof plugs. 1,000’ 10 Mil drip line. 20 dripline connectors w/ shut-off valve. Hole punch tool. 25 Drip line end sleeves. 6 Drip line repair couplings.
