Riegos Ruiz products

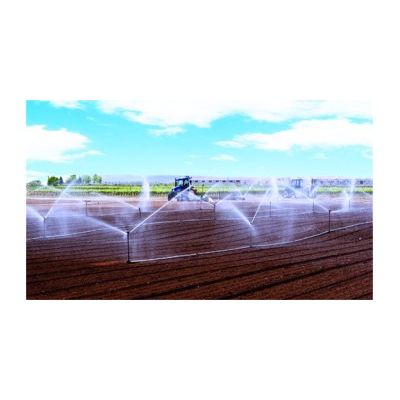

The sprinkler irrigation system is one that tries to imitate the rain. Ie, water for irrigation is sent to the plant by pipeline and by sprayers, sprinklers and called thanks to a certain pressure, the water rises then falls to spray or as droplets on the surface to be irrigated.

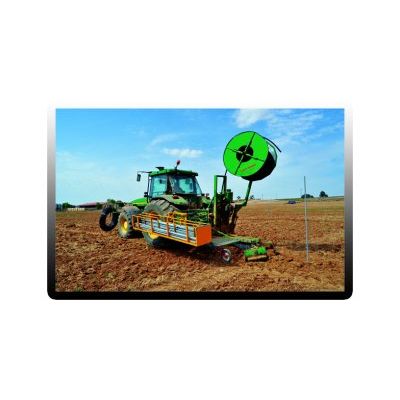

It is an automatic system to bury pipes and sprinklers carrier between 0.50 and 1.00 meter deep. The machine is guided by GPS.

The underground sprinkler irrigation system has many advantages: The sprinklers make a fine rain, in this way a microclimate is obtained that favors the growth of the crops. There is no crust formation in the ground. Do not place it on the roots of the plant. Leaves are not broken. A very good irrigation uniformity is achieved. The large amount of irrigation per line reduces the effect of dispersion caused by wind. It is a system that needs little water flow to work. It adapts to all types of terrain, from flat to wavy or very wavy. It is suitable for any type of soil. It is suitable for any type of crop, from germination to harvest. Sprinkler irrigation offers greater control and efficiency in the application of the same amount of water. Easy fertilization control. It reduces labor.

Sprinkler irrigation is that irrigation system that tries to imitate rain. That is to say, the water destined to the irrigation is sent to the plants by means of pipes and by means of sprayers, called sprinklers and, thanks to a certain pressure, the water rises so that it then falls pulverized or in the form of drops on the surface You want to water.

The canyons are used to irrigate a wide variety of crops, usually they are large areas where the water supply is abundant. The barrel is equipped with a large spray gun or sprinklers. Its great advantage is that its price is low compared to the surface it can cover and its long service life.

It is an automatic system to bury pipe and sprinkler rods between 0.50 and 1.00 meters deep. The machine is guided by GPS. The machine is guided by GPS and is capable of installing the High Density Polyethylene sprinkler pipe (HDPE Ø32 to Ø75), and the galvanized steel sprinkler rod 3 meters in length.

Drip irrigation technology uses controlled amounts of water proportionally to the soil`s absorption capacity and evapotranspiration that occurs near the plant. This system is especially suitable for horticultural crops: vegetables, greenhouses, gardens, vineyards and orchards, as well as flowers, corn, etc. with the possibility of a high degree of mechanization. The operation of this system is based on the distribution of water uniformly at points near the plants, slowly, drop by drop, at a speed and frequency adapted to the needs of the plant, with the strict possibility of compensating evapotranspiration, which allows a thorough control.

The pyramidal structure formed by angular profiles of galvanized steel and the anchoring by bolts to the square platform of reinforced concrete give the central pivot a great robustness to be able to withstand the rotating movements of the machine. The pivot is supplied with water through a riser and an elbow, both in galvanized steel 8 5/8 "(219 mm) in diameter. It has a 13-way collector, exterior and with access ladder to it. The standard free height of this machine is 3.30 m, and can reach 4.10 m in the extra tall model.

Designed to irrigate in 2, 3, 4 or more places without requiring a tractor to change position. The central rotating car has two driving wheels, which are used for circular operation or for its transfer, and this is done by turning said wheels 90 ° once the car is lifted with the hydraulic group installed in it.

Standard front systems are suitable for watering rectangular or square surfaces, due to their linear movement. The car is mounted on 2 or 4 driving wheels and is fed by a hose that connects to one or more hydrants, depending on the size of the plot and the flow to be provided. The alignment system is carried out by means of a groove or a cable with probes.
