RM Irrigation Equipment S.p.A products

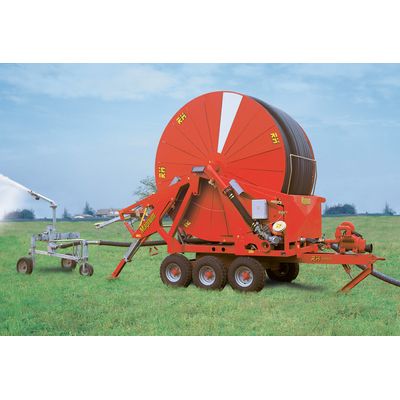

The Gx range of RM hose-reel irrigation machines features a swivelling turret structure, which, by rotating on the fixed bottom frame, allows the reel to be steered towards the desired direction to unwind the hose. The machine is outfitted with duly oversize telescopic brackets to allow a high anchoring on any kind of ground. They are operated by self-balancing hydraulic cylinders with safety valves, and they ensure the required stability.

Both the Xj and Xjm range of RM hose-reel irrigation machines feature a structure that can be hydraulically lowered. Therefore, two positions are determined: on wheels to allow its transfer on road or standing on the ground during work phase. The latter position allows the hose to be unwound in any direction - 360° movement - without having to reposition it again. Moreover, the base resting on the ground gives the machinery a high anchoring which is very useful with long hoses with a large diameter.

Both the Xj and Xjm range of RM hose-reel irrigation machines feature a structure that can be hydraulically lowered. Therefore, two positions are determined: on wheels to allow its transfer on road or standing on the ground during work phase. The latter position allows the hose to be unwound in any direction - 360° movement - without having to reposition it again. Moreover, the base resting on the ground gives the machinery a high anchoring which is very useful with long hoses with a large diameter.

4-speed gearbox with shafts completely in oil bath PTO for fast hose rewinding. Braking system to unwind the hose with fully automatic operation.

Hose rewinding through rack system and electric motor powered by 18V Li-ION batteries for ELECTRIC TOOLS (PATENTED), enabling the use during night and in low-light conditions. The batteries are maintenance-free and positioned in a locked compartment. Quick battery charger supplied.

Hose rewinding through rack system and electric motor powered by 18V Li-ION batteries for ELECTRIC TOOLS (PATENTED), enabling the use during night and in low-light conditions. The batteries are maintenance-free and positioned in a locked compartment. Quick battery charger supplied.

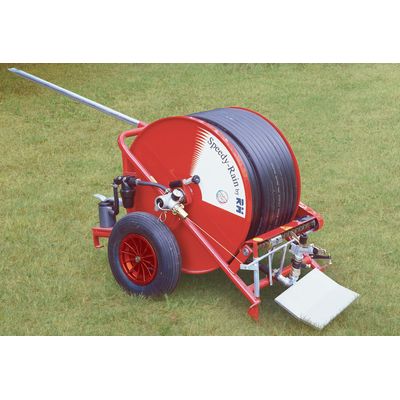

The machine rewinds the hose while irrigating. It works with a variable inlet pressure from 1,5 BAR min. to 6 BAR max. (got from water system, submerged pumps, and so on...). The rewinding speed is adjustable in order to distribute the right quantity of water on the field.

The machine rewinds the hose while irrigating. It works with a variable inlet pressure from 1,5 BAR min. to 6 BAR max. (got from water system, submerged pumps, and so on...). The rewinding speed is adjustable in order to distribute the right quantity of water on the field.

All engine-driven pump and engine-driven clutch units of the MOP series are manufactured with new factory engines: FPT (Iveco), JCB, Deutz, J. Deere, Perkins. All pumps belong to the high-performance type manufactured by RM or Rovatti or Caprari.

truction of underground systems to irrigate and distribute livestock and biomass sewage sludge. Systems can be designed with high-quality hoses and pipes made up of electrowelded AD polyethylene (complying with the UNI EN 12201-2 standard) or of PVC in 6 ml. bars (complying with the UNI EN ISO 1452 standard ) with stainless steel / galvanized fittings.
