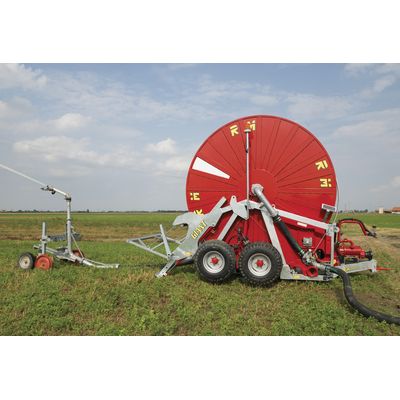

RM - Model XJ -Gaint -Hose-Reel Irrigation Machine
Both the Xj and Xjm range of RM hose-reel irrigation machines feature a structure that can be hydraulically lowered. Therefore, two positions are determined: on wheels to allow its transfer on road or standing on the ground during work phase. The latter position allows the hose to be unwound in any direction - 360° movement - without having to reposition it again. Moreover, the base resting on the ground gives the machinery a high anchoring which is very useful with long hoses with a large diameter.
The transverse width of the highest reel allows to considerably lower the overall height of RM machines and their barycentre, thus making them among the stablest ones on the market. Monolithic RM frames are free from any screwed structural elements, manufactured in a single block and hot-dip galvanized, designed through a three-dimensional calculation system. All models of the XJ and XJM series are equipped with barycentric axle on wheels, thus rendering their transport easy and safe under any running condition.
Such setting - obtained by moving the wheels towards the bar – translates into a less load on tractor hitch system, thus making its use easier even with small-sized vehicles. Moreover, all models have rear telescopic anchoring brackets that can be individually enabled on the two sides of the machine.
- Flow-distributor turbine with built-in by-pass.
- 4-speed gearbox with shafts completely in oil bath.
- PTO for fast hose rewinding.
- Braking system to unwind the hose with fully automatic operation.
- Automatic speed compensator according to the hose winding diameter.
- Anti-slackening hose safety device.
- Safety device to stop the machine if the hose winds unevenly.
- Electronic hose rewinding speed measuring device.
- Digital clock.
- Worm screw hose turning system with micrometric regulation and double guide.
- Reel support on ball bearings and lipped retention ring with stainless steel bushing.
- Frame swivelling on a ball bearing centre plate through 360°.
- Automatic trolley lifting at the end of sprinkling by means of VertiLift™ system.
- Hydraulically controlled rear anchoring brackets, independent on both sides.
- Bar base hydraulically controlled through spool valve.
- Flexible rubber hose to supply the machine, complete with connections.
- Adjustable trolley track and wheel height.
- SIME sprinkler with slow return and set of nozzles
- Pressure-gauge in glycerine bath on the machine.
- Pressure-gauge in glycerine bath on the sprinkler (SIME).
- Ball joint on sprinkler trolley.
- Sprinkler trolley ballasts.
- Adjustable bar eye.
- Hot-dip galvanized structure (painted reel).
- Six-lever spool valve on swivelling arm
- Water inlet on both sides.
- Hydraulic rotation of bearing centre plate with six levers
