This is a complete system with cleaning unit, fan unit with motor and cyclone. The components are manufactured from galvanised steel plate. The system is designed for rough cleaning of grain and cleans away dust, husks and lighter straw. Cleaning is most effective at the lower capacity level and optimum cleaning results are only obtained with the complete system.

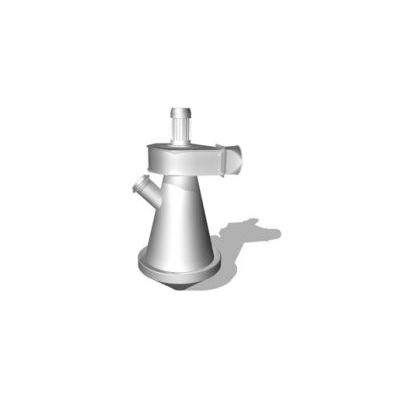

TORNUM’s cyclones are constructed to separate grain waste and air in the best possible way. The positioning of cyclones and grain waste management is an important aspect in planning a grain handling system that offers a good work environment.

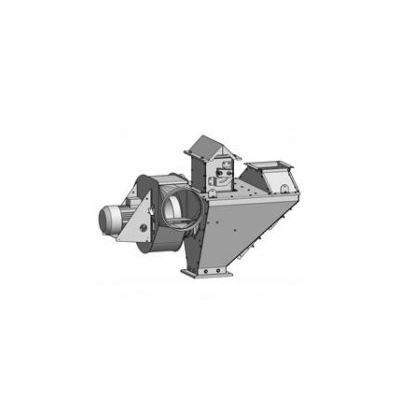

The Aspirator is intended for dust separation of grain and other granular materials, and has a good output, despite its small size. Aspirators remove dust, chaff, light grains and other impurities from grain. You can opt for a traditional `dust and chaff` aspirator, with capacities from 30-150tph. This works by spreading the grain over a screen and uses air to vacuum the grain clean. Alternatively the heavy duty aspirator uses a built-in duct to direct the grain to a central inverted cone fitted with a thin grain curtain, where it then drops into an outlet hopper. Between the cone and the hopper is a gap that pulls air through the grain to remove any lighter particles. Capacities for this type of aspirator range from 40-150tph.
