VYR SA products

The sprinkler VYR-3100 is a "ROTATIVE" sprinkler type for low-flow irrigation.This model is a full circle sprinkler and has a regulatory angle projection system that can vary between -8 ° and 25 °. Its design and versatility offers a perfect fit for irrigation of greenhouses, under-tree irrigation and even industrial applications. The VYR-3100 has 4 bayonet nozzles easily differentiate by its color code. The constant speed system operated by a brake on a shaft inserted into a cavity filled with silicone. The rotational speed will vary depending on operating pressure, although the average is 45 sec / rev..

Rotative low flow sprinkler with helicoidal steel ball, made of plastic and male connection 1/2 ". Has three models of 25 º, 14º and 10 º. Its normal use, depending on the angle model used, is for spacing of 8x8 m. to 10x10 m. in horticultural system mounted on the AGRO-STAND, 5x5 m. and even 8x8 m. spacing for under-tree irrigation.

The sprinkler VYR-16 is a low flow sprayer with a special design to operate at different angles and under extreme temperature conditions. This is a male rotor  1/2" circular farm, made of plastic and has two references depending on the angle of mounting. Its axis and springs are made of stainless steel and O-rings and washers in stainless steel, Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.

The sprinkler VYR-26 is a low flow sprayer specially designed to operate at different angles and under extreme temperature conditions. This is a  male rotor 1/2" circular farm, made of plastic and has two references. Its axis and springsare made of stainless steel,  and  O-rings  and washers in stainless steel, Teflon and special polycarbonate to withstandcontact with fertilizers more aggressive in the market.

Reach: 3 - 5 m. Flow: 240 - 1200 l/h. Working pressure: 1 - 4 bar. Area: Full or part circle. Nozzles: Four nozzles of 360º, 270º, 180º and 90º. Trajectory angles: 30º. Maximum spray height: 1.2 m. Uniformity coefficient higher than 90% in areas of 4x4R, 5x5T, 5x5.5T.

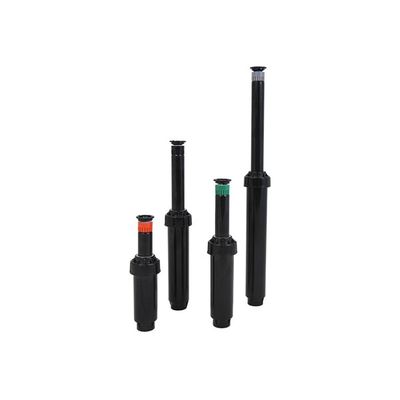

General Properties:. Pop-up spray sprinklers for residential and urban use.. 1/2” female connection. Made of Delrin plastic.. Stainless steel spring with continuous tension.. Anti-sand rubber seal.. Removable grit filter for maintenance cleaning.. Check valve for 6 m of water colunm retain (optional).. TECHNICAL SPECIFICATIONS:. Reach: 3 - 5.5 m / 98, - 18 ft. Flow: 240 - 1200 l/h (depending on nozzle type).. Working pressure: 1 - 4 BAR / 14 - 58 PSI. Area: Full or part circle.. Nozzles: Four nozzles of 360º, 180º, 90º and adjustable 0º - 360º. Trajectory angles: 30º. Maximum spray height: 1.2 m / 3,9 ft. Flow regulation: From total closure up to 15 VAN. Uniformity coefficient higher than 90% in areas of 4x4R, 5x5T, 6x6T m / 13x13R, 16x16T, 20x20T ft..

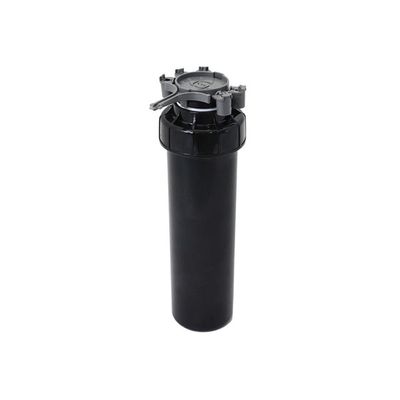

Sprinkler with gear drive technology using water-lubricated gears. Silent irrigation system. Controllable from the cover using the multi-function key. 1/2” female connection. Made of delrin plastic and stainless steel. Teflon, steel and rubber rotation joints. Stainless steel spring with continuous tension. Easily adjustable irrigation area because of the internal system of overlapping clips. Depending on the positioning of the "part circle clip system", this sprinkler has the ability to operate in 4 positions of 15º, 90º, 180º, 270º and 360º. Wide range of “water curtain" nozzles with excellent distribution. Built-in check valve (8.8 m water column). Removable grit filter for maintenance cleaning.
