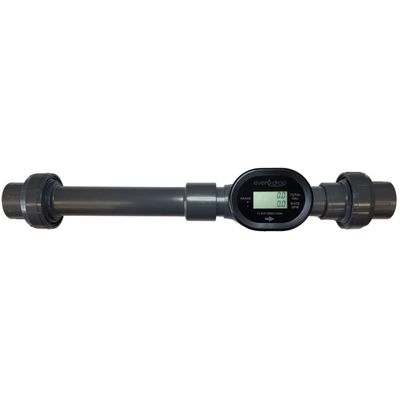

Everydrop - Model 1004-EX - 1 Inch, 2 Wire Irrigation Meter w/ Display Connects to Smart Controllers
Model 1004-EX is a 1” vortex irrigation flow meter that provides highly accurate, real time flow monitoring. It features a display and has a 2 wire interface with shared power and pulse signal. (Compatible with other meters on the market) This model comes with upstream straight length and unions for easy installation.
Most popular related searches
- Digital Display with:
- Flowrate in GPM
- Total in Gallons
- Leak Detect/Over Range Indications
- 2 wire interface to popular timers such as Spruce and Rachio
- Power and signal on 2 wires
- Includes PVC unions for easy installation
- See data sheet for details
Size: 1”
Flow Range (Indicated): 0.5 to 30 GPM (0.1 GPM resolution)
Accuracy:
- RANGE 1.0 to 20.0 GPM: +/-2% of reading
- RANGE 20.1 to 30.0 GPM: Usable Over-range; Accuracy Not Guaranteed (~2%)
- RANGE 0.5 to 0.9 GPM: Leak Detect Range
Update Rate:
- RANGE 1.0 to 30.0 GPM: 1.5 seconds
- RANGE 0.5 to 0.9 GPM: < 1 minute (typically 7 seconds)
Pressure Loss at 20GPM: Less than 1.5 psid
Burst Pressure: 350 psi minimum (Meter body)
Operating Temperature: 32 F to 140 F
Construction Materials:
- Vortex Generator: Stainless Steel
- Vortex Sensor: EPDM Rubber (wetted surface)
- Meter Body: ABS (and PVC pipe 6” extension)
LCD Display:
- Flowrate (GPM): 3 digit, 0.1 GPM resolution
- Flow Total (Gallons): 8 digit, 0.1 Gallon resolution
- Alerts: Out of flow range, Leak Detect
- Auto Reset: 10 Million gallons or power cycle
