COMMANDER - Model T1255 - 3 Tractor with Attachments

• Penetrate rock more effectively with less wear due to its low-speed, high-torque, splined headshaft motor.
• Improve job monitoring with the exclusive Vermeer TEC® Plus Electronic Control System.
• Handle high-volume spoil removal through an extra-wide 36”/91cm conveyor opening.
• Increase digging chain service life with features such as high-alloy, easy-access bottom boom wear strips and optional boom-top rollers.
• Vermeer Vantage Track Extended Care Service Program offers an optional 3-year/3,000-hour or 5-year/5,000-hour warranty on the components of the closed loop hydrostatic systems.
• See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.

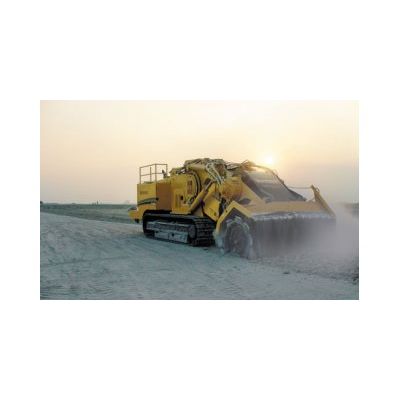

The heavy-duty T1255 COMMANDER® 3 from Vermeer® packs the power you need to dig through solid rock to install large-diameter pipe for contractors working in the energy pipeline business or in deep sewer and water applications.

A Caterpillar C18 ACERT Tier 3 engine with 600 hp (447 kW) delivers the muscle needed for digging in rock, trenching cross-country, or working drainage and utility projects on roadways.

The T1255 COMMANDER® 3 rock trencher provides dual-path hydrostatic drive with full counter rotation, and the 36" (91 cm) wide conveyor is large enough for high-volume spoil removal. Dual Rotary Power headshaft motors and a splined headshaft produce lower speed and higher torque, delivering superior rock penetration and low chain wear for better production results. It also features high alloy, easy-access bottom boom wear strips, and optional boom-top rollers for increased digging chain life.

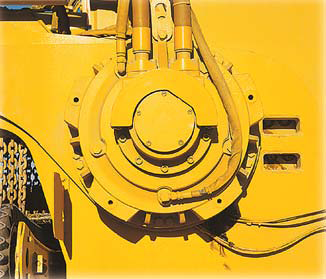

Dual Rotary Power headshaft motors and a splined headshaft produce lower speed and higher torque, giving you superior rock penetration and low chain wear for better production results.

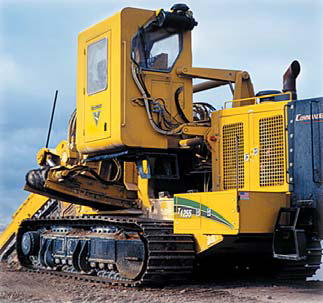

A 600 hp (447 kW) Caterpillar Tier 3 engine delivers the power needed to triumph over tough rock-trenching projects.

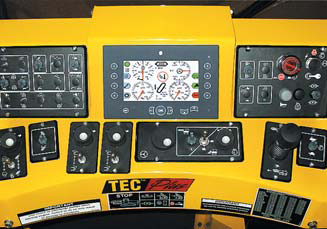

The new TEC® Plus electronic control system features CAN bus technology, which utilizes multiple control modules located throughout the machine for real time performance data and advanced troubleshooting capabilities.

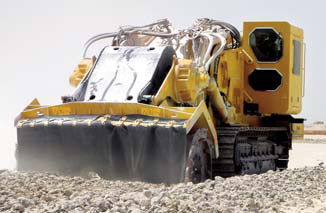

The innovative Terrain Leveler Surface Excavation Machine offers unmatched production in a variety of applications, including surface mining, site preparatio n, over-burden removal, road construction/reconstruction, and soil remediation. The T1255 Terrain Leveler SEM can cut an area up to 12 feet (3.7 m) wide and up to 32 inches (81.2 cm) deep in a single pass.

Transport Dimensions

Approach angle: 15°
Height: 146" (370.8 cm)
Length: 350" – 703" (889 cm – 1786 cm)
Weight range (tractor only): 145,000 lb (65,771 kg)
Width: 134" – 156" (340 cm – 366 cm)

Engine

Make and model: Caterpillar C18 ACERT Tier 3
Gross horsepower: 600 hp (447 kW)
Rated engine rpm: 2100
Number of cylinders: 6
Fuel tank capacity: 370 gal (1400 L)
Operating range: 11.6 hr
Fuel consumption @ full load: 31.8 gph (120.4 L/h)
Max engine operating angle*: 45°
Air cleaner: Dry-type exhaust-aspirated
Aspiration: Turbocharged and air-to-air aftercooled (ATAAC)
Cooling medium: Liquid
Electrical system: 24 V DC
Oil filter: Full-flow
*Engine operating angle does not indicate safe machine operating angle

Tracks

Ground pressure: Trencher 16.4 psi (113 kPa)
Terrain leveler 21.7 psi (149 kPa)
Tilt track available: No
Tilt track max angle: N/A
Track drive type: Dual-path hydrostatic w/ planetary transmission
Track length: 176" (447 cm)
Track pad type: Double grouser w/ dirt relief, single grouser
Track pad width: 30" (76 cm)
Track size: Cat 375 Excavator
Travel speed max (high range): 110 fpm (33.5 m/min)
Travel speed max (low range): 41 fpm (12.5 m/min)
Parking and emergency brake:
Spring-applied, hydraulic release, wet disc brake
Service brakes: Hydrostatic

Conveyor

Belt width: 36" (91.4 cm)
Conveyor belt speed range: 0 – 814 fpm (0 – 248 m/min)
Conveyor belt style: Fingered
Conveyor length: 180" or 240" (457 cm or 610 cm)
Conveyor shift available: Yes
Conveyor shift distance: 65" or 125" (165 cm or 318 cm)
Conveyor style: Curved
Discharge direction: Right or left
Discharge height range: 74" – 103" (188 cm – 262 cm)

Cab

Air conditioner / heater: Standard
Air suspension seat: Standard
AM / FM stereo w/ weather band:

Optional

Elevating: Yes
Pressurized / filtered air: Standard
Roll Over Module (ROM): Yes

Hydraulic System

Oil tank capacity: 210 gal (795 L)
Oil type: Vermeer HyPower 68 or Vermeer HyPower 100
Pressure setting: 2500 psi (172.4 bar)
Pump flow max: 28 gpm (106.4 L/min)
Type: Pressure and flow compensated (load sensing)

Trencher Attachment

Weight (tractor plus attachment): 220,000 lb (99,790 kg)
Boom depth options: 8`, 10`, 12`, 14`, 16`, 18` (2.4 m, 3 m, 3.7 m, 4.3 m, 4.9 m, 5.5 m)
Boom top rollers: Optional
Chain speed range: 316 – 643 fpm (96 – 196 m/min)
Cutting width range: 30" – 48" (76 cm – 122 cm)
Digging chain size: 5501 double or D7 double (can 235)
Idler diameter: 40" (101 cm) or 50" (127 cm)
Offset range – left of center: N/A
Offset range – right of center: N/A
Trencher drive type: 4 pumps and 2 motors hydrostatic
Terrain Leveler® Surface Excavation

Machine

Weight (tractor plus attachment): 243,000 lb (110,223 kg)
Left / right tilt: +/- 5° or +/- 6" (+/- 15 cm)
Max cutting depth: 27" (69 cm)
Cutting width: 144" (366 cm)
Drum speed (low): 281 – 401 fpm (86 – 122 m/min)
Drum speed (high): 411 – 587 fpm (125 – 179 m/min)
Laser acceptable: Yes
Digging chain size: 5501 or D8N
Drive type: 4 pumps and
2 motors hydrostatic
