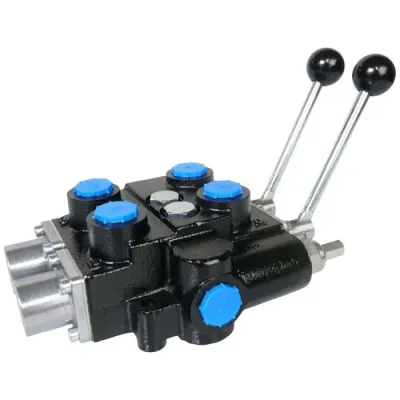

RuggedMade - Model 33-135-VALV-06 - 30 GPM Log Splitter Valve with Power Beyond Port
This hydraulic control valve by RuggedMade is engineered specifically for log splitters, capable of handling two distinct hydraulic circuits simultaneously, such as a log lift and an adjustable height blade. Its robust 2-spool design accommodates a maximum flow rate of 30 gallons per minute (GPM) and withstands pressures up to 3,000 PSI. The control valve features 3/4 inch inlet and outlet ports, with 1/2 inch work ports, all utilizing NPT(F) threading. The valve is constructed from cast iron for enhanced durability, and the spools return to a neutral center position via spring tension without detent capabilities. Additionally, the valve supports 'power beyond' functionality, allowing it to connect an additional downstream valve by utilizing a separate power beyond sleeve, sold independently. Its adaptable lever mounts offer flexible installation options, broadening its application within hydraulic systems.
This hydraulic valve is ideal for controlling two independent hydraulic circuits on a log splitter such as a log lift and an adjustable height blade. It features:
- 30 GPM max flow rate
- Chrome-plated dual spools
- Two spool control levers
- 1/2" work ports
- 3/4" in/out ports
- 4-way, 3-position spring return
- Power Beyond port (connector sleeve sold separately)
Take Control With RuggedMade Hydraulic Valves
This is a 2-spool tandem center directional hydraulic control valve with a maximum flow rate of 30 GPM.
Each spool has one lever for independent control of two hydraulic circuits. The levers have three positions and return to the center position using spring tension. Neither spool is equipped with a detent. This makes the valve ideal for controlling two functions on a machine, such as a log lift and an adjustable height blade on a log splitter.
The inlet and outlet ports are 3/4" NPT. The four work ports are 1/2" NPT.
The valve is mounted to a platform using holes that are cast into the body of the valve. The levers are reversible to allow for different mounting options.
This valve also has "power beyond the port" capabilities for connecting an additional valve downstream. The port for the Power Beyond connection comes plugged. A Power Beyond sleeve (sold separately) is required to connect to this port.
The pressure relief valve is adjustable.
- SKU: 33-135-VALV-06
- Manufacturer: RuggedMade
- Part Number: MD3025NBBAA4A3B
- Max Flow Rate: 30 GPM
- Pressure Rating: 3,000 PSI
- Work Ports: 1/2" NPT(F)
- Inlet / Outlet Ports: 3/4" NPT(F)
- Spool: 2-spool
- Spool Type: 4-way, 3-position, tandem center
- Body Material: Cast Iron
- Product Weight: 23
