DSI - 8" Low Rate Sweep
FromDSI Inc

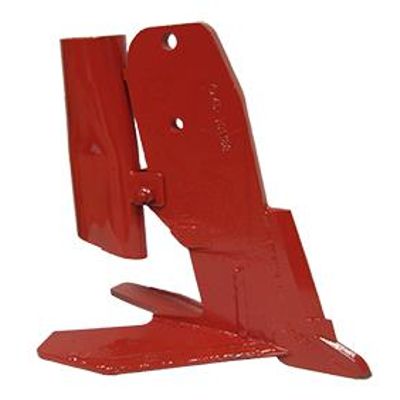

Shown with standard 3" tube. 8" Wing width. Designed for hi speed (5 - 8 mph) and lower rates (2,500 - 5,000 gallons per acre) to meet the E.P.A. Phosphorus Rules. Lifts the soil less than 1". Vertical shank portion is 1/2" thick. The 8" Low Rate Sweep moves less soil, allowing higher speeds at low rates.
Most popular related searches
- Series 70 Chisel Point Sweeps are designed to penetrate frozen soil.
- 1/2" thick Chisel Point Sweep Shank combined with 62 degree swept back wings results in minimum soil disturbance and allows shallow placement of nutrients.
- The sweeps are designed with thin Vertical Portion Hi Carbon steel to minimize soil disturbance at high speeds.
- To prevent breakage, the sweeps are attached to a 1-1/4" x 2" edge bent alloy steel shank to allow side movements when striking rocks.
- Standard 3" or optional 3-1/2" & 4" OD tubes with clip available on all sweep sizes.
- Tube pivot prevents hose damage
