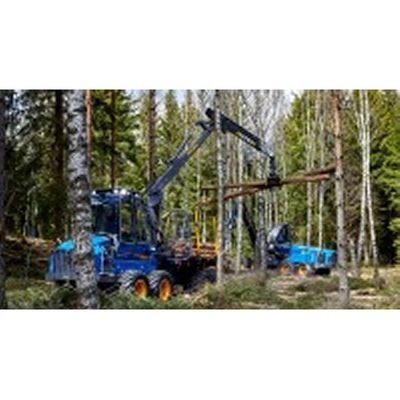

Rottne - Model F11D -8 Wheeled Forwarder

The frame has the same design as the larger Rottne forwarders and the central joint, which has a 45° steering angle, is
located only 40 cm in front of the machine’s centre point. This means that the wagon has very good tracking. As Rottne F11D is a small forwarder with large wheels it has low ground pressure and good bearing capacity.

Crane with different reach options

The cab is the same on all Rottne forwarders with high comfort and a modern design. Of course, it can be equipped with the cab suspension system Comfort Line which gives the operator smooth and impact free terrain driving. The crane is a Rottne RK85 with several extension options and a reach of 7.5 to 9.3 metres.

12 ton load capacity
With 12 ton load capacity and many accessories as crane tilt, dozer blade and balanced bogie, it is possible to use F11D for many different areas of work

• 12 ton load capacity
• Strong frame construction with frame lock
• Bogie with 700×24,5 wheels
• 4 cylinder engine,125 kW Final Tier 4 (FT4)
• 167 kN tractive force
• Steering force 68 kNm
• Steering angle 450
• Welded load bunks
• Bogie lift, crane tilt and dozer blade as option
• RK85 Crane with optional lengths

Engine

• Type JD 4045 HFC09 Power Tech Plus PSS Final Tier 4 (FT4)
• Output 125 kW (168 hp) at 2000 rpm
• Torque 667 Nm (492 lb ft) at 1500 rpm
• Cylinder volume 4.5 litres (274 in3)
• Diesel tank 135 litres (36 US gal)

Transmission

• Type D5 controlled, hydrostatic/mechanical with full capacity control. 3 gear steps.
• Tractive force 167 kN (37 540 lbf)
• Speed, gear 1 0 - 5 km/h (3,1 mph)
• Speed, gear 2 0 - 8,1 km/h (5 mph)
• Speed, gear 3 0 - 24 km/h (15 mph)

BRAKES

• Type 2-circuit electrically/hydraulically operated negative wet disc brakes. Automatic load brake. Spring-assisted parking and emergency brake.

Wheel equipment

• 8 WD 710/40 x 24,5

Chassis

• Type Articulated joint with slew bearing and frame lock. Bolted load bunks. Front gate and first bunk hydraulically movable.
• Steering angle +/- 45°
• Max. steering touque 68 kNm (50 150 lb ft)
• Horizontalangle +/- 22°

Hydraulic System

• Type Load sensing hydraulic system.
• Pump capacity 165 liter (43 US gal)/1 500 rpm
• Working pressure 3 - 24 MPa (435 - 3 480 psi)
• Degree of filtration 10 micron
• Tank volume 80 litres (21 US gal)

Electrical System

• Type 24 volt electrical system with CAN-bus technology.
• Battery 2 x 142 Ah
• Alternator 150 A
• Machine control system ROTTNE D5, with a 9” colour touch screen
• Working lights 21 pcs

Cab

• Type Spacious, vibration-proof safety cab. ISO certified.
• Noise level 67 dBA
• Climate system ACC

Crane

• Type Jib arm crane RK85 withdual slew cylinders and telescope 2.1 m/double telescope.
• Lifting torque 86,7 kNm (63 911 lb ft)
• Angle of rotation 380°
• Reach 7,5/9,3/9,7 m (25/30,5/32 ft)
• Torque 27,1 kNm (19 977 lb ft)

Weight and dimensions

• Service weight from 16 200 kg (35 710 lbf)
• Width 2 830 mm* (111,5 inch)
• Length 8 833 mm (348 inch)
• Transportation height 3 727 mm (146,8 inch)
• Ground clearance (at articulated frame lock) 577 mm (22,7 inch)
• Loading capacity 12 000 kg (26 460 lbs)
• Loading area 4,5 m2 (48,5 ft2)

Equipment

• Chains Yes
• Lighting Xenon or LED Yes
• Sprinklers Yes
• Engine/cab heater Yes
• Blinds Yes
• Mobile telephone Yes
• Vacuum pump Yes
• Reversing camera Yes
• GPS/Geoinfo Yes
• Filler pump Yes
• Green oil Yes
• Colour printer Yes
• Mobile broadband Yes
• Full toolkit Yes
• Central lubrication Yes
• Tracks Yes
• Forwarder computer Yes
• Extended wagon frame Yes
• Extra load bunk Yes
• Cab damping system COMFORT LINE Yes
• Dozer blade Yes
• Double telescope Yes
• Balanced bogie system Yes
• Bogie lift Yes
