Alstor - Model 840H -Agile Forestry Harvester Machine
The most agile harvester in the class. This fantastic harvester exceeds expectations with its agility, maneuverability and stability. It is based on the Alstor 840 pro with the same driveline and engine with a completely new rear trailer. With a shorter wheelbase, the harvester has a much smaller turning radius and is experienced as incredibly smooth in dense thinning. The machine becomes very stable with the help of 4 removable weights with a low center of gravity. The crane is a Mowi P25 5.2 m and with a heavily built crane. This means that you can access trees you did not think were possible.
Parker El-prop system with mini levers is standard and in combination with our own developed program for Tapio 160 you get more smart and user-friendly functions. Alstor 840H comes with a high level of standard equipment such as. 10 LEDs on the cab and wreath tip lighting, electric plug with mini joysticks, front frame, saw holder, tool box and 27 ”wheels. You can also extra equip your machine according to your needs. Maybe AC and diesel heaters or volume and diameter measurement.
- Length: 4.50 m
- Width: 1.65m
- Service weight: 3700kg
- Engine: 3-Cyl Diesel 25 hp
- Electrical system: 12v, Generator 60 A, 10 LED lamps on the cabin and wreath tip lighting.
- Transmission: Hydrostatic transmission with lockable differential front & rear, constant 8 wheel drive. Stepless high and low gear.
- Brakes: Travel brake via transmission, mechanical disc brake for parking.
- Steering: Power steering orbitrol, folding steering wheel, reverse steering / dual command by default.
- Tires: 27 × 10.5-12, 8-layer
- Speed: 0-15 km / h
- Crane: Mowi P25 parallel crane 5.2m / 400kg lifting force.
- El-prop mini-pack system with 7 ”screen
- Crane tilt: With working range at +25 to -12 degrees angle.
- Harvesting unit: Tapio 160. Cutting diameter 25 cm. Weight 215 kg.
- Length measurement and proprietary software. Includes counterweight 920kg.

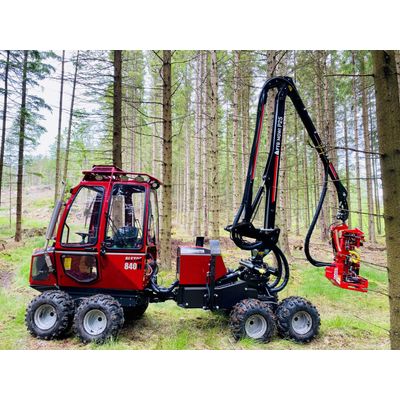

- The machines in the pictures can be extra equipped.
