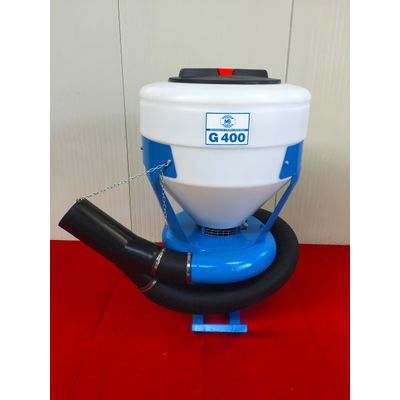

MB Bergonzi Cannone - Model G400 - Agricultural Duster

Agricultural duster for conventional, biological and integrated treatments with sulphur powder and/or other single or premixed powder products.

Most popular related searches

Housing fan: two side outputs
Applications: treatments in greenhouses, in the open field, on hillsides, fruit trees, including tall trees
Capacity: 125 Kg – 160 L
Fan diameter: 400 mm
Total range: 25 m horizontally
Standard equipment: manual side gun
Power consumption: 8-9 CV
Weight when empty: 70 Kg
Height: 115 cm
Total width: 110 cm
Depth: 80 cm

Tank: in polyethylene, capacity 125 Kg – 160 L, quick fastening screw-on lid
Agitator: Mechanical, alloy, inside the powder tank
Multiplier: in cast aluminium with oil-bath tempered spiral bevel gears; standard cardan joint Z6 1-3/8" at 540 rpm.
The dusters have a direct drive gears mechanism.?
The use of a cardan joint with a limiter is necessary for a complete guarantee of the gears (see user manual)
Fan: in dynamically balanced steel with closed moulded blades
Conveyor: fan housing made of cast aluminium with two direct side outputs already divided in equal measure on the left and right sides for greater range and better distribution
Powder adjustment: by means of manual lever with graduated positions from 0 to 5 - possibility manual remote adjustment control with a rigid wire out and back - possibility of adjustable hydraulic remote control
Diffusers: manual side gun, possibility of hydraulic side gun
Frame: painted, weight-bearing, with 3 point hitc
