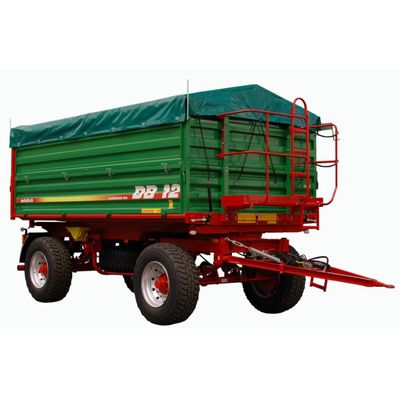

Metaltech - Model DB 12 000 Premium -Agricultural Trailers
Pneumatic emergency brake, road-allowed brake installation made by Knorr Bremse, central lock, parabolic springs, NEW tires in standard version, wheels 385/65 R22,5 NEU, two brake cilinders of each axle, full LED lighting, 12/24 electric installation, tipping cylinder with safety valve which stops oil flow at maximum angle (50o to the back, 45o to each side), small window at the back with unloading shute, steps inside loading box, electric, hydraulic and pneumatic outlets for second trailer, safety traingle, standard color: RAL 3002 and 6001, floor steel thickness – 4mm, wall thickness – 2,5mm, closed profile of frame, shot blasted with underpaint layer and red RAL3002 paint, drawbar hitch – 40mm, rear bumper as protection of tail lights, chain inside loading box, extension, wall profiles made by BOWA, rear axle mudgurads, wedges – 2 pcs.
- Technical Carrying Capacity (Kg): 12 000
- Permissible Total Wight (Kg): 16 000
- Allowable Total Weight (Technically (Kg): 16 000
- Top Speed (Km/H): 40
- Own Mass (Kg): 3965
- Number of Axles: 2
- Standard Suspension Type: Parabolic Springs
- Standard Wheel Size: 385/65 R22,5
- Maximum Wheel Size: 560/45 R22,5
- Body Length (Mm): 4500
- Body Height (Mm): 600+800
- Body Width (Mm): 2420
- Volumetric Capacity Without/With Extension (M3): 15
- Volumetric Capacity With Third Criss-Cross Extension (M3): 24
- Total Length (Mm): 7020
- Total Width (Mm) : 2550
- Loading Height - Standard Wheels (Mm): 1360
- Minimum Power Demand (Km): 89
