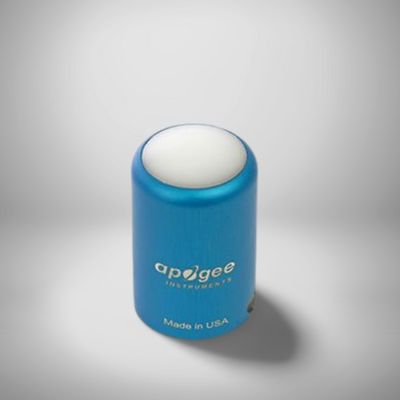

The SQ-500 is a self-powered, analog, full-spectrum quantum sensor with a 0 to 40 mV output. The sensor incorporates a blue-enhanced silicon photodiode and custom optical filters with a rugged, self-cleaning sensor housing design, an anodized aluminum body with an acrylic diffuser, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers.
It measures incident PPFD on plant canopies in outdoor environments or greenhouses and growth chambers and reflected or under-canopy (transmitted) PPFD measurement in the same environments
Measurand: Photosynthetic Photon Flux Density(PPFD)
Sensor Type: Blue-enhanced silicon photodiode
Signal Output: Analog (0 to 40 mV)
Supplied With: 5 m Cable, Factory test/ Calibration Certificates.
