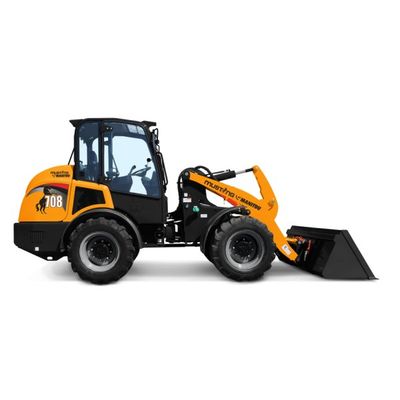

Mustang - Model 708 -Articulated Loader

SHARE

Operating Weight (kg): 10,920 lbs. (4959), Static Tipping with Bucket - Straight (kg): 7,907 lbs. (3587), Bucket Hinge Pin Height (mm): 136.8" (3474).

Most popular related searches
articulated loader
Operator`s Cab
Operators world-wide will find state-of-the-art ergonomics, unsurpassed visibility and ease of operation.
  • Tiltable steering column with center-mount instrumentation for easy operator reference.
  • The deluxe suspension seat is spring-suspended with a high amount of travel providing a comfortable ride for the operator.
  • Excellent 360-degree visibility is achieved by positioning the operator above instead of behind the load for safe operation and excellent view of the attachment.
  • All models feature comfortable and easy-to-access grab handles to assist entry and exit.
  • A complete cab enclosure option provides enhanced comfort and safety for all-day-long operation.
  • Cab doors have an extended-latch design, which allows latching in a slightly-open position for limited ventilation, per operator preference.
  • Standard equipment includes heating system, four working lights, wipers on front and rear windows, a cup holder and adjustable side mirrors.
  • Spacious surface window area offers excellent all-around visibility.
  • Generous sound absorbing material between the cab and engine compartment is standard with cab enclosure and suppresses sound levels.
Controls
The Mustang 708 Articulated Loader features simple-to-use controls at your finger tips. Even the most un-accustomed operator will be comfortable operating these loaders.
  • Multi-function joystick lever controls the lift arm, bucket, float, travel direction, differential lock and auxiliary hydraulic functions
  • Inching pedal allows operators to vary the ground speed while maintaining a fixed engine speed, to optimally run attachments while enabling precise control.
  • Engine speed can be conveniently controlled two ways: (1) with the right foot throttle or (2) with the convenient hand throttle, which also allows the ground speed to be controlled independently of engine speed.
  • Differential lock button on joystick increases traction for 100% effective engagement of axles.
  • 2-speed hydrostatic drive can be activated “on the go” by a switch on the joystick.
