Blue Diamond - Auger Bits

SHARE

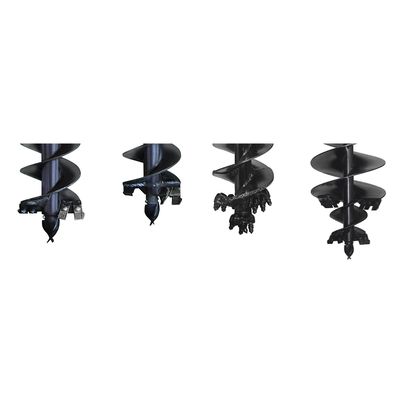

Below are the different types of Auger and Bits Extension. Rental Recommended.
Most popular related searches
tree diameter
soil compaction
  • Moderate ground conditions
  • Fabricated boring head
  • Hardened bolt on teeth
  • Hardened fishtail point
  • 4′ standard length
  • Heavy duty double flighting
HEAVY DUTY BITS
  • Moderate ground conditions
  • Fabricated boring head
  • Hardened bolt on teeth
  • Hardened fishtail point
  • 4′ standard length
  • Heavy Duty double flighting
HEAVY DUTY BITS WITH CAST HEAD
  • Difficult ground conditions, heavy clay, frozen ground, fracturable rock, asphalt and compacted soils
  • Cast steel boring head
  • Hardened drive-in teeth
  • Hardened fishtail point
  • 4′ standard length
  • Heavy Duty double flighting
  • Carbide teeth available
ROCK BITS

REQUIRES MINIMUM DOWN PRESSURE OF 3000 LBS TO WORK WELL

  • Solid rock and concrete
  • Cast tooth pockets
  • Drive-in carbide bullet teeth
  • ¾” thick boring head
  • 4’ standard length
  • Will not work for dirt
TREE BITS
  • Tapered version of Heavy Duty bit

Part Number : Model : Weight

HEAVY DUTY BITS : - : -

105105 : 4" Diameter, Heavy Duty, W/2" Hex : 37 lbs

105110 : 6" Diameter, Heavy Duty, W/2" Hex : 45 lbs

105115 : 8" Diameter, Heavy Duty, W/2" Hex : 76 lbs

105120 : 9" Diameter, Heavy Duty, W/2" Hex : 85 lbs

105125 : 10" Diameter, Heavy Duty, W/2" Hex : 100 lbs

105130 : 12" Diameter, Heavy Duty, W/2" Hex : 113 lbs

105135 : 15" Diameter, Heavy Duty, W/2" Hex : 132 lbs

105140 : 16" Diameter, Heavy Duty, W/2" Hex : 136 lbs

105145 : 18" Diameter, Heavy Duty, W/2" Hex : 166 lbs

105147 : 20" Diameter, Heavy Duty, W/2" Hex : 182 lbs

105150 : 24" Diameter, Heavy Duty, W/2" Hex : 210 lbs

105155 : 30" Diameter, Heavy Duty, W/2" Hex : 278 lbs

105160 : 36" Diameter, Heavy Duty, W/2" Hex : 372 lbs

HEAVY DUTY WITH CAST HEAD BITS : - : -

105205 : 6" Diameter, Heavy Duty, W/2" Hex : 45 lbs

105208 : 8" Diameter, Cast Head, W/2" Hex : 90 lbs

105210 : 9" Diameter, Cast Head, W/2" Hex : 98 lbs

105215 : 10" Diameter, Cast Head, W/2" Hex : 113 lbs

105220 : 12" Diameter, Cast Head, W/2" Hex : 128 lbs

105225 : 15" Diameter, Cast Head, W/2" Hex : 139 lbs

105230 : 16" Diameter, Cast Head, W/2" Hex : 167 lbs

105235 : 18" Diameter, Cast Head, W/2" Hex : 204 lbs

105237 : 20" Diameter, Cast Head, W/2" Hex : 231 lbs

105239 : 24" Diameter, Cast Head, W/2" Hex : 272 lbs

105241 : 30" Diameter, Cast Head, W/2" Hex : 312 lbs

105243 : 36" Diameter, Cast Head, W/2" Hex : 430 lbs

105245 : 42" Diameter, Cast Head, W/2" Hex : 460 lbs

105250 : 48" Diameter, Cast Head, W/2" Hex : 550 lbs

ROCK BITS : - : -

105305 : 4" Diameter, Heavy Duty, W/2" Hex : 70 lbs

105310 : 6" Diameter, Heavy Duty, W/2" Hex : 66 lbs

105320 : 9" Diameter, Rock, W/2" Hex : 102 lbs

105330 : 12" Diameter, Rock, W/2" Hex : 134 lbs

105340 : 16" Diameter, Rock, W/2" Hex : 203 lbs

105345 : 18" Diameter, Rock, W/2" Hex : 201 lbs

105350 : 24" Diameter, Rock, W/2" Hex : 291 lbs

105355 : 30" Diameter, Rock, W/2" Hex : 340 lbs

105360 : 36" Diameter, Rock, W/2" Hex : 395 lbs

TREE BITS : - : -

105405 : 18-9" Diameter, Tree, W/2" Hex : 120 lbs

105410 : 24-12" Diameter, Tree, W/2" Hex : 198 lbs

105415 : 30-15" Diameter, Tree, W/2" Hex : 264 lbs

105420 : 36-18" Diameter, Tree, W/2" Hex : 302 lbs

105425 : 42-18" Diameter, Tree, W/2" Hex : 432 lbs

105430 : 48-24" Diameter, Tree, W/2" Hex : 449 lbs
