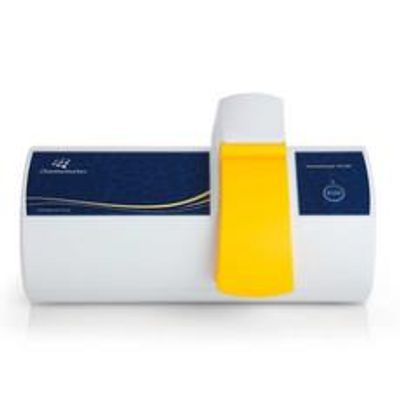

NucleoCounter - Model NC-200 - Automated Cell Counter

• Consistent cell counting and analysis
• 21 CFR Part 11/GMP-ready
• Use with Via1-Cassette™ to eliminate human error
• No calibration required
• Unlimited software licenses

The NucleoCounter® NC-200™ automated cell counter comes with optimized analysis settings for cell count and viability measurements. Along with its user-adaptable protocols and specialized assays, the NC-200™ is an all-in-one solution for cell counting and cell viability determination.

Use the Via1-Cassette™ with this cell counter for automated staining and sample handling. The disposable cassette is volume-calibrated to ensure high-precision counts and cell reproducibility.

This closed cell counting system helps you stay protected when handling samples. No pipettes, no exposure to (toxic) reagents, and minimal clean-up make the NucleoCounter® system a safe option.

• Application Type(s) Cell count & viability for mammalian cells
• Cell type(s) Mammalian cells, including cell lines, leukopaks, PBMCs, whole blood, MSCs, T-cells, aggregated cells, & microcarriers
• Software NucleoView™
• Consumable(s) Via1-Cassette™
• Capacity (Analysis time) 50 seconds (one step), 120 seconds (two steps)
• Analysis volume 1.4 μl
• Optimal range 5×104 to 5×106 cells/ml (for counting)
• Staining dye(s) Acridine orange (AO), DAPI
• Loading volume 60 μl
• Excitation 2 LED light sources peaking at 365 nm and 505 nm, dark field light
• Emission (nm) A single dual-band emission filter: 410 – 460 nm and 540 – 650 nm
• Optics Lens with x1.3 magnification, 1/2.” CMOS camera
• Data output Images, tables, histograms, scatter plots
• Data export formats .cm, .csv, .pdf, .cmpp, .bmp, .tiff
• Product number 900-0200
• Size 38 × 26 × 22 cm (W × H × D)
• Weight 4.5 kg (9.9 lb)
• Supply Voltage 24VDC (100-240V ~ 50-60Hz)
