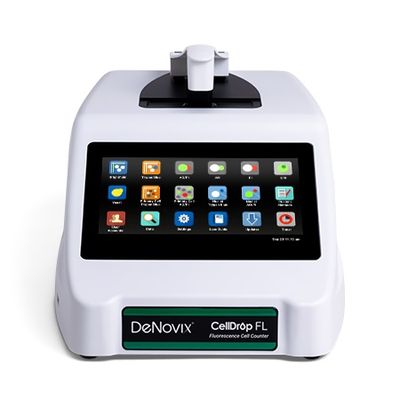

DeNovix CellDrop - Automated Cell Counters

DirectPipette™ Technology

The CellDrop Automated Cell Counter Series brings the familiar Load, Measure & Wipe Clean functionality of microvolume spectrophotometers to cell counting. Traditional plastic slides or glass hemocytometers are replaced by two permanent optical sapphire surfaces. These are positioned parallel to one another by a calibration-free, high-precision mechanism, forming a chamber of precisely defined height. 10µL of cell suspension is pipetted into the chamber, analyzed and simply wiped away with a dry laboratory wipe. The powerful live-view image allows instant verification that cleaning has been successful.

Accurate Across the Widest Range of Cell Size and Density

Using conventional counting methods, samples with high or low cell densities require time consuming dilution or concentration steps. The variable height chamber of the CellDrop Automated Cell Counters enables the most accurate counts over the widest cell densities – 7 x 10² – 2.5 x 10⁷. Chamber height can also be adjusted to accommodate almost any cell with a diameter range of 4 to 400µm.

Easy to Learn. Powerful to Use.

Designed by life scientists, the CellDrop EasyApps™ software exceeds the functionality of high cost cell counters while also delivering the ease-of-use of simpler systems. EasyApps and the high definition, 7″ touchscreen interface provides intuitive cell counting, from sample loading to data exporting in seconds. Pre-installed applications include a range of common applications for one-touch analysis of assays such as Brightfield, Trypan blue, AO/PI, GFP and Yeast and the ability to create custom methods. CellDrop Cell Counters are a flexible workhorse for the busy, multi-user lab.

21 CFR Part 11 Compliance Ready

EasyApps Secure provides an optional suite of software controls that allow regulated GxP facilities to easily add CellDrop to their cell counting workflow (view the compliance statement). The software is fully integrated within the on-board operating system and includes a range of features essential to ensuring compliance, including:

• Password protected system access
• Integrated electronic signature controls
• Comprehensive user account management
• Secure audit trail recording
• Advanced data handling and export tools

Optimized Measurement Apps

DeNovix CellDrop Series instruments are stand-alone systems equipped with intuitive, easy-to-use apps for automatic cell counting and viability analysis.

Brightfield

•   Fast count of Brightfield cell image
•   Live/dead assessment using Trypan Blue assay
•   Cells/mL, cell size and % viability reported

Fluorescence

•   Cell viability analysis using acridine orange (AO) and propidium iodide (PI)
•   Analyze primary cells in the presence of debris
  • AO for identification of nucleated cells
  • PI for cell viability
  • AO/PI for live/dead
•   Yeast viability
•   GFP Transfection Efficiency
•   Six intuitive results analysis formats

Advanced Declustering Algorithms

Ideally, samples will contain only single cells, but clusters are commonplace with some cell types or at higher cell density. All EasyApps Count Apps use proprietary declustering algorithms developed by DeNovix. Complex samples of regular or irregular cells over a wide range of cell density can be rapidly and accurately analyzed using CellDrop.

Analysis of cluster size and frequency can be performed and graphically displayed.

Primary Cell Counting

Primary cell samples are challenging to quantify for traditional cell counting methods. EasyApps makes the analysis simple and accurate with two optimzed Count Apps for fluorescence and brightfield measurement of primary cell samples.

Using the dual fluorescence capabilities of the CellDrop FL, debris and anucleate cells are excluded from analysis while viability of the nucleated cells is analyzed.

• Dynamic Range: 7 x 102 – 2.5 x 107 cells/ml
• Cell Size Range: 4 – 400 µm
• Sample Volume:
• 5.0 µL @50 µm chamber height
• 10 µL @100 µm chamber height (standard)
• 40 µL @400 µm chamber height
• Measurement Speed:
• Brightfield- 3 seconds @1 x 106 cell/mL
• Dual Fluorescence- 8.5 seconds @1 x 106 cell/mL
• Optical Modes:
• CellDrop FL – Dual Fluorescence, Single Fluorescence, Brightfield, Fluorescence + Brightfield
• CellDrop BF – Brightfield only
• Sample Surfaces: Optical Sapphire
• Brightfield Illumination: LED 530 nm
• Fluorescence Illumination: LED 470 nm
• Emission Filters:
• 530 nm +/- 25 nm
• 645nm +/- 37 nm
• Gesture Recognition: Multipoint touch, swipe, pinch
• Display: 7” high definition color display
• Glove Compatibility: All common laboratory gloves
• Camera:
• CellDrop FL – Basler acA2040-55µm
• CellDrop BF – Basler daA2500- 14µm
• Images: 2048 x 800 px (3.15 MB) with overlay capabilities
• Focus: User-controlled onscreen coarse and fine adjustment
• Detector:
• CellDrop FL – Sony IMX265
• CellDrop BF – ON Semiconductor MT9P031
• Connectivity: WiFi, Ethernet, HDMi, USB
• Footprint (LxWxH): 37 x 21 x 18 cm
• Weight: 8 Kg
• Operating Voltage: 12 VDC
• Approvals: UL/CSA, CE, FCC, Japan CAB
• Manufacturer Location: USA
• Warranty: 2 Years
• Colors: Arctic White
• Internal Storage: 120 GB solid state drive – upgradable to 1 TB
• Accessories: Barcode reader, keyboard, mouse, 20 µL pipette
• Patents: View patents
