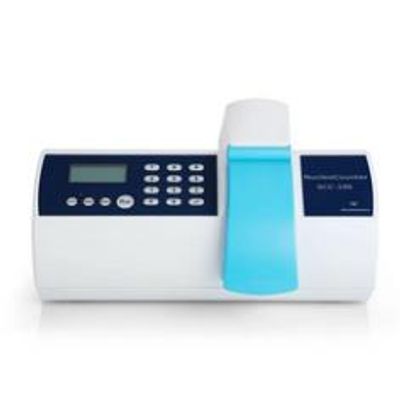

NucleoCounter - Model SCC-100 - Automated Somatic Cell Counter

This instrument is extremely simple to use, even for the untrained operator. Measuring cell counting and viability is made easy with the SCC-Cassette™, an innovative disposable device. Simply add the reagent to the sample, load the sample into the instrument and get results within 30 seconds.

The measurement range is from 1×10⁴ cells/ml to 2×10⁶ cells/ml, with an optimal range from 1×10⁴ cells/ml to 1×10⁶ cells/ml.

A true stand-alone instrument, the NucleoCounter® SCC-100™ somatic cell counter performs all calculations, cell counting and data analysis. Transfer image data directly to your PC for additional documentation options.

• Easy to operate
• Analysis in 30 seconds
• No cleaning or calibration required
• Excellent data reproducibility
• Safe sample handling and disposal

• Application type(s) Cell count & viability analysis
• Cell type(s) Somatic cells from the dairy industry
• Software SomaticView™ for documentation and
• presentation (optional)
• Consumable(s) SCC-Cassette™, Reagent C (500 ml),
• Dispenser 1-10 ml
• Capacity (Analysis Time) 30 seconds
• Working factor (WF) Up to 100 samples per hour
• Analysis time 30 seconds
• Analysis volume 1.4 µl
• Optimal range 1×104 to 1×106 cells/ml
• Staining dye(s) Propidum iodide (PI)
• Loading volume 60 μl
• Optics CCD camera
• Data output Data numbers
• Data export formats .txt, .xls
• Product number 900-0200
• Size 38 × 26 × 22 cm (W × H × D)
• Weight 3 kg / 6.7 lb
• Supply voltage 24VDC (100-240V ~ 50-60Hz)
