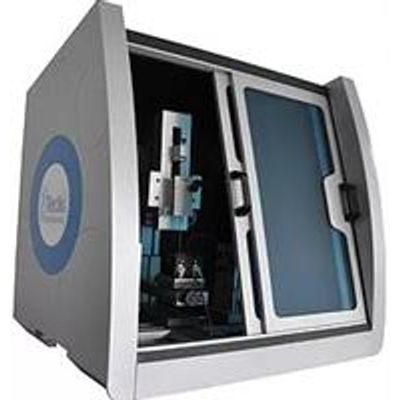

Tracker - Automatic Drop Tensiometer
The interfacial tension between liquid-liquid or liquid-gas can be calculated from the study of image analysis: shape of a drop. Raw digital images of the video card can be analysed and displayed to determine surface tension, interfacial tension or contact angle.
Image analysis is done by fitting the Laplace equation. Images can also be acquired and stored at a rate of 60 per second.
The software controls the motor of the syringe in order to produce drops at a predetermined volume.
It also allows to control the volume variation of the drop (sinusoidal variation, in steps or in crenulations), the frequencies and the amplitudes are imposed by the user to determine the viscoelastic modulus, and its real and imaginary components.
-
Surfactant characterization
-
Efficiency/Effectiveness of the surfactants
-
Kinetics
-
Capacity to adsorb/absorb
-
Capacity to decrease the surface tension
-
Quantity of surfactant to saturate the surface
-
-
Surfactant behavior on the surface
-
Wettability of the surface
-
Properties of biological surfactants (protein, lipids ...)
-
Competition of surfactants
-
Automatic Critical Micelle Concentration (CMC)
-
High frequency (10Hz)
-
Exchange phase
-
Pressure cell up to 200 bar, 200°C
-
Surface/Interfacial tension
-
Contact angle (static/dynamic)
-
Surface dilatational rheometer (Viscoelastic modulus)
-
Surface elasticity
-
Surface viscosity
