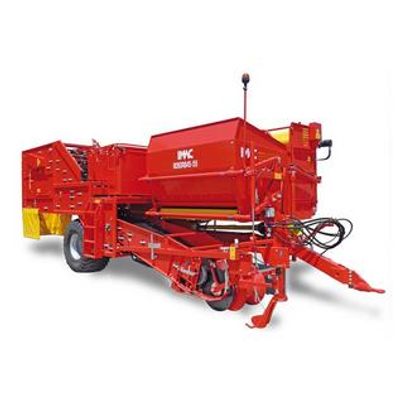

Imac - Model 8090 RB 45 55 - Automatic Onion Loader
FromImac s.r.l
Automatic Onion Loader with a moving-bottom hopper (4,5/5,5 T). Sieving channel (80 cm) elevator-defoliator channel (90 cm). 2 hedgehogs.
Most popular related searches
onion loader
onion
haulm roller
tractor tyre
tractor hydraulic
onion lifting
haulm
tractor
leaf remover
potato
- Lenght 964 cm
- Width 300 cm
- Height 312 cm
- Output per 8 hours Ha/g 0,80 - 3,30
- Power requirement 75 kw
- Weight 6800 kg
- Sieving channel 80 cm
- Elevator-defoliator channel 90 cm
- Transversal channel 82 cm
- Sorting web channel 80 cm
- Scrap web channel 38 cm
- Hopper capacity 4500-5500 kg
- Hydraulic foot
- Drawbar for lower hitch with adjustable height
- 1 share blade with adjustable angle
- Floating soil feeler roller with independent adjustment
- Auto-adjustable grass cutting discs mounted on springs
- Haulm deflectors (2 pcs)
- Haulm intake rollers (2 pcs)
- Fast change of the pick up
- Rubber shakers with manually adjustable intensity on sieving web
- Cardan shaft with clutch
- Sieving web pitch 40 mm with straight bars Ø 11 mm
- Elevator web pitch 35 mm with straight bars Ø 11 mm and rubber porters
- Wide mesh haulm web around the elevator web – Vulcanized bars with rubber fingers
- 5 rows of haulm intake combs mounted on springs with manually adjustable angle
- Haulm tearing roller placed under defoliator web
- Hydraulically driven longitudinal cleaning hedgehog with retaining roller and electrically adjustable angle
- Additional hydraulic system with 2 pumps for longitudinal cleaning hedgehog, rotary comb and transversal cleaning hedgehog
- Hydraulically driven transversal cleaning hedgehog with electrically adjustable angle
- Sorting table with hydraulic adjustable speed linked to tractor hydraulic system
- Chute for discharging on both sides (1 on the right and 1 on the left)
- Large sorting table up to 6 persons reachable on both sides
- Acoustic signal
- Hydraulically driven transversal scrap web
- 4 rows of sorting rollers with progressive adjustment
- 4 rows of declodder rollers
- Hydraulically driven drawbar
- Hydraulically driven axle steering
- Electro-hydraulic controls
- Hydraulic system powered:
- A Pistons, sorting table and the hopper engine linked to the tractor system
- B) Rotary comb,longitudinal and transversal cleaning hedgehogs with independent hydraulic system
- Loose web to fill up the hopper with adjustable position and with electric control from the selection table and the tractor
- Tyres 550/60 – 22,5
- Working pressure control on feeler roller with nitrogen cylinder
- Hydraulically driven grass cutting discs (1 right and 1 left)
- 2 speed gearbox
- Hydraulic equipment for harvesting in 2 phases with rubber paddles
- Onion lifting kit with synthetic roller
- Separation kit for stones with hydraulically driven rotary brush and retaining roller (instead of rotary fingers)
- Stone hopper (with hydraulic opening)
- Additional haulm intake combs (1 row)
- Separation kit for small potatoes with hopper and an hydraulically driven discharging web (hydraulic extension)
- Fall breaker at the end of the hopper
- Road lights (without road traffic approval)
- Automatic centring of the sieving channel
- Automatic centring of the wheels
- Digging depth control through a hydraulically level wheel
- Digging depth control through a mechanical level wheel
- Automatic hopper filling up
- Electric adjustment of the web shaker on first sieving web
- Tyre 700/50 – 22,5 (1 pcs) (instead of the standard one)
- Color monitor with 2 cameras
- Parasol roof
- Supplementary haulm tearing roller (1 pcs)
- Stone hopper with hydraulically driven unloading web JP
- Hopper for small potatoes with high unloading JP
- Additional control box
- Braking system (oil or compressed air)
- Road traffic approval (valid only for Italy)
