Demsan Demirdöğen Agricultural Machinery Industry

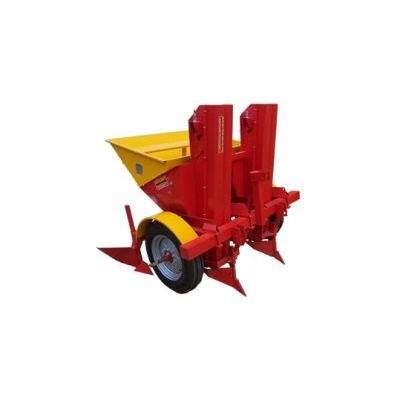

Automatic Two Rows Potato Planter Machine

From

0

Certainly,innovative,efficient,reliable and robust. Inserts are available for the different potato sizer. Small, Large, very big, cut and chitted. No matter what seed you use. The device creates vibrations in the rubber belt to reduce double planting. Hopper 400 kg capacity (4 rows 1000 kg) Exhaustion flaps 35 decare/hour planting capacity. Tuber Space adjustment in 8 different levels by changing transmission gears. One by one planting with it’s special cup conveyor system. Optional fertilizer and disinfestation unit. Optional Shaping Board System. Optional Adjustable Grooved Back Large Covering Discs System wtih Dust Bearings. (Vanvey System)

ATTACHMENT TYPE  Semi-Hang (Categorie 1 and 2)
POWERED BY Wheel
NO. Of PROCESSING ROWS 2
DISTANCE BETWEEN ROWS  700 – 750 mm
TUBER SPACE 180, 210, 230, 250, 300, 340, 380, 410 mm
OPERATIONAL WIDTH  1400 mm
OPERATIONAL DEPTH 150 – 200 mm
OPERATIONAL CAPACITY  0,3 - 0,5  ha/h (3 - 5da/h) (@ 1,5 km/h)
WIDTH  2000 mm
LENGTH 1795 mm
HEIGTH  1655 mm
WEIGHT 470 kg
HOPPER SEED CAPACITY 400 kg
MANURE HOPPER CAPACITY 100 kg (OPTIONAL)
SEED DIMENSIONS  Çap: Ø 30 – 100 mm
