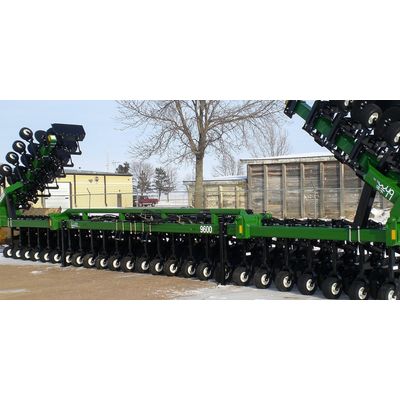

B&H - Model 9100 & 9600 Series - Row Crop Cultivators
Our row crop cultivators have been helping farmers control weeds for over 20 years. Having been around that long, we have been able to fine tune our design to provide you with the most reliable method of weed control. Since the introduction of glyphosate resistant crops, many farmers have been fighting an uphill battle against the weeds which have become increasingly resistant to the herbicide, making their weed control tactics less effective, and requiring a significant increase in herbicide usage. This is not only making exclusive weed control via herbicide more difficult, but is also significantly increasing the cost to control these weeds.
-
Most popular related searches
Product Details
Meanwhile, many farmers have discovered the simple effectiveness and cost savings of a more traditional approach to weed control through the use of our row crop cultivators. While weeds continue to develop resistance to the herbicides being applied to them, they continue to be no match for our cultivators.
We understand that each farmer runs their operation a little differently and are able to accomodate to the custom needs of each farmer. With a wide range of configurations to fit any farming operation's need, we have a solution that will work for you.
Features
- Weight: With the wrap-around parallel linkages and the short units, the 9100 allows smaller tractors to lift the cultivator without the aid of lift assist wheels; considerably easier than most of its competitors’ comparable models.
- Adjustments: Quick, easy adjustments to the gauge wheel and center coulter depth, and the down pressure, all with the tee handle wrench that is provided. This allows the farmer to find tune their cultivation practices in mere minutes.
- Wide linkage: Full length bushings extend the life of the bushings and the cultivator, maintaining the rigidity of the units.
- Quick-adjust cutaway disks (9100 only): Clean up weeds better with precise depth and width accuracy across the machine with cutaway discs easily adjusted by hand.
- High-residue: Center coulter does an excellent job in cutting even the heaviest trash, allowing good flow through the cultivator.
- Tool bars: Heavy-duty, internally mounted cylinder allows wrap-around linkage design while allowing 180-degree fold wing sections; narrowing the transport width of the cultivator allowing greater maneuverability. 3,000 p.s.i. tie-rod cylinders matching almost any tractor.
- Tall tunnel shields (optional): Extra-long tall tunnel top shields allow better flow and increase speed while providing the maximum protection in crops of all-sizes.
- Rigid rear shank: Spring reset or strut design guarantee that the rear shank will not “cheat out” in hard ground.
- Unique pitch adjustment: Pitch on sweeps is incremented, allowing for identical and precise adjustment to increase penetration or reduce slabbing.
- Rock trips (optional): Our unique design allows the shank to swing back when encountering obstacles or rocks. This helps prevent damage to the unit when encountering substantial obstructions.
Configurations
- 20' | 22' | 30' | 36' | 38' | 40'
- We also make a custom dual width 30'/50' model for rows with alternating widths.
- Rigid generally available up to 12 row models
- Folding generally available down to 8 row models
- 13' x 6.5' x 6' flat-proof tire is standard on all models.
- 18' x 6.5' x 6' flat-proof tire is available.
- Corn and bean-welded ridging sweeps available in both narrow and wide row widths.
- Corn and bean flip-down ridgers available in both narrow and wide row widths for both standard sweeps and point share-style sweep configurations. Ridgers mount in the back of the footpiece.
- Hitches that mount to the toolbar or a lift assist wheel are available for all models.
- NH3 knives that mount to the front of the standard footpiece with either one or two tubes.
- Low Crown 54-degree standard sweep.
- Replaceable point and share sweep.
