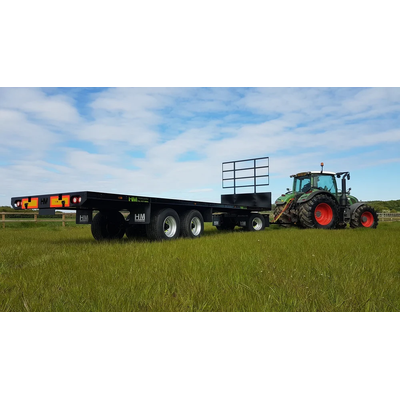

HM Trailers - Model HBT - Bale & Pallet Trailers
Our Bale trailers are built with a box section chassis, the rails running the full length of the trailer, with 4mm thick ribs running the width of the trailer to the side rails. This chassis design offers strength whilst at the same time keeping the weight down on the trailer for reduced soil compaction on fields.
STANDARD BUILD
The floor is made of 4mm plate, other options include Durbar flooring or Keruing hardwood timber floors. The headboard is a fixed one-piece design to add strength and provide a firm area to stack loads against. The optional front bale rake is removable from the headboard. Rear rakes, hydraulic box compressors or bale hoops are mounted into the rear of the chassis box section and then pinned for security.
RUNNING GEAR
Standard running gear for the trailers are heavy duty agricultural axles with all wheel hydraulic braking. An option is recommended to upgrade to high speed axles with s-cam brakes, allowing the trailers to be air ready, with our air / oil twin line load sensing braking systems able to be fitted at any point in the future.
WHEELS
The standard wheels fitted are 385/65 R 22.5 8 stud super singles (ride height of 1200mm). Options to have 215/75 R 17.5 twin wheels or 480/45 R 17 reduce the floor height to 900mm. Other tyre choices recommended are 435/50 R 19.5, with a ride height of 1030mm.
TURNTABLE TRAILERS
Starting at 32ft, these trailers have suspension on the turntable as well as the rear axle set up.This set up is better suited to extra long trailers
- Heavy duty 50B weld on eyes
- Rope hooks/ chain points
- 2ft Headboard
- Smooth steel flooring
- Hydraulic all round braking
- L.E.D Lights
- Wheel nut indicators
- Hand brake
- Super single wheels 385/65 R 22.5
- High speed axles (HMDC 10/ 12/ 14)
- Air/oil twin line braking
- ABS with air brakes
- Hydraulic load sensing valve
- Mudflaps
- Flashing beacon
- Adjustable sprung drawbar
- Side boards (on top of bed)
- Side rails (lower)
- Side lockable toolbox (steel)
- Side lockable toolbox (plastic)
- Alterations to std. body sizes
- Front/ Rear rake
- Rear round bale rake
- Hydraulic box compressor
- Hydraulic side walkways
- Ratchet strap rail (under bed)
- Heavy duty lashing points
- Durbar floor 4.5mm
- Timber floor keruing
- 4ft Rear extension (extra lights)
- 4 retractable load locks
- Side marker lights (compulsory over 9m)
- Custom colour
- Demount-able water tanks
- Heavy duty construction (RHS over RHS)
- Seed frame
- Bale securing system
- Passive steering axle
- forced steering axle
- Central tyre inflation system
- Wheel & tyres selection
