Loading
The bale can be loaded in several ways:
- stationary loading door: loading thanks to a second attachment.
- hydraulic loading door: loading hydraulically controlled from the cab.*
- Easy Load System in option.
Unrolling
Unrolling is possible thanks to a conveyor chain with adapted teeth. Speed can be adjusted on the unroller itself or from the cab (electric remote control box).

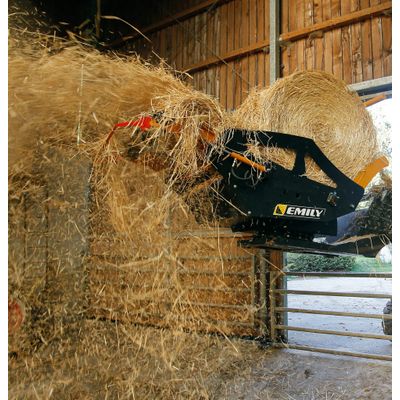

Bedding
The bedding system enables a 6 meter distance spreading
depending on the straw quality and type. The spreading can be made with spring tines or discs (NEW). It ensures a constant spreading with little dust.
- Emily’Connect selector box in the cab with a conveyor
chain speed variator - Conveyor chain driven by a hydraulic motor
- Hydraulic lifted straw spreader or removable discs with fast connection
- Adapted to bales from 1,00m to 1,80m diameter
- Not adapted for bales from fixed chamber round
balers
- Convenience: optimized offset, compact height, cut out side frame for an excellent visibility from the cab.
- Easy Load System: self loading door with hydraulic telescopic arm for an automatic adjustment to any bale
diameter. - Efficiency: 180° orientation. Bedding up to 6 meters away.
- Versatility: only one machinery for any bale from 1.00m up to 1.80m diameter.
- Safety: Bale Unroller Spreader with discs retraction. Quick removal with hydraulic coupling
- Easy Load system
- Hydraulic offset (+/-300mm)
