Cord King

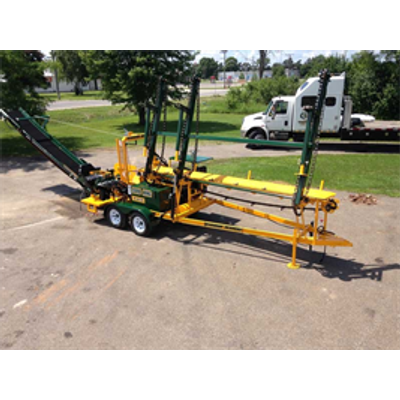

Cord King - Model M20-30 - Bar Saw Firewood Processors
FromCord King
34-ton splitter (required for 8-way H wedge). Hydraulic Folding Log Deck. Extended live deck (8`) with bearing upgrade. 4-, 6-, or 8-way hydraulically adjustable wedge. Hydraulic log stop adjustable 12-24" length. Automatic clamping. Extended infeed conveyor to 20′. Extra live deck legs, dual drive available. Operator safety cage or operator canopy (roof). Hydraulic Oil Cooler Standard: 35,000 BTU/hr. Heated operators cab. Air conditioning hydraulically driven or 120V plug in. 24` to 40` stand alone o?oading conveyor (radial stacking). 12` or 16` integrated offloading conveyor. Overhead log grapple assist (crooked wood). Available Log lifting system with double 2” Hydraulic Cylinders available.
Most popular related searches
firewood processor
hydraulic logging
firewood
harvester bar
log deck
log grapple
firewood saw
logging system
chain feeding
log splitting
Specifications
- 50 HP Turbo Diesel Engine of your choice
- Hydraulic-driven 404 harvester bar and chain with pressure relief system
- Gravity feed bar oiler system with large 1 ½ gallon capacity
- 29-ton splitter force
- 4- or 6-way fixed splitting wedge
- Adjustable log length gauge
- 16` long Infeed Conveyor with continuous chain drive feeding
- 3-leg manual folding live deck
- Operator platform with deluxe seat
- Lexan safety screen for excellent visibility
- Firewood Cleanout Grate
- Fuel Capacity: 15-gallon fuel tank
- Hydraulic Reservoir Capacity: 55 gallons
- 10k lbs tandem axles with electric brakes and running lights
- 2 5/16″ Ball Hitch
Performance
- Production Rate: up to 3 full cords/hr
- Cycle Time (cut and split): every 5 seconds
- Maximum Log Diameter: 20”
- Maximum Log Length: 30’ (butt on the deck)
- Estimated Fuel Consumption: 1.5 GPH
- Weight: 6,800 lbs
- Transport Dimensions: 7’-0” wide, 23`-0" long, 12`-0" high
