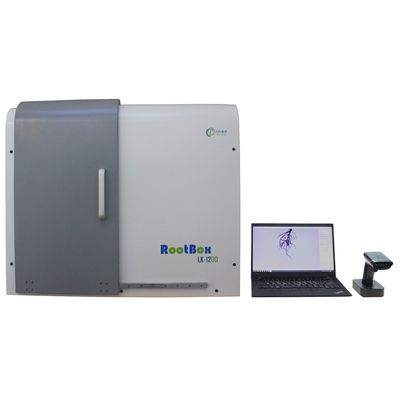

Eco-mind - Model LK-1200 -Bench Plant Root Analyzer
LK-1200 bench root analyzer is designed for digital rotational imaging of root system after flushing; can be used to analysis two-dimensional images of abundant root system continually, which can be involved to hundreds of plant root samples per day; can be used for rotational imaging of root from any angle continuously. With the professional controlling software and image analyzing software, LK-1200 can be used to measure length, diameter, area, surface area, biomass and topology of an entire root system. Furthermore, LK-1200 is equipped with barcode scanner, which can name root images automatically to save much time.
LK-1200 can be generally applied to research and education of agronomy, biology, ecology, cultivation, horticulture and so on. Imaging system of LK-1200 is stationary high definition imaging system(illustrated above). Before delivery, distinguish ability, area, distance have been set in advance by manufacturer, and therefore customers can directly fixed flushed root to automatically revolving table.
With the professional barcode scanner, LK-1200 can identify the name and serial number of root system automatically. The root images can be analyzed by professional root analyzing software, but prior to imaging, focal length and position ought to be set.
- 20.4 megapixels high definition imaging module;
- Root images rapid naming, with the barcode scanner;
- Root can rotate 360 degree, and imaging root system can be performed in any angle;
- Imaging system can adjust frame automatically by rail according to the size of root system;
- Powerful root image analysis software can measure twenty root morphology parameters.
- Framework : aluminum;
- Illuminant: LED;
- Root images analysis software: included
- camera parameters
- Port: USB3.0;
- Interface rate: 5.0Gbps;
- Sensor type: CMOS;
- Max frame rate: 19.5FPS;
- Resolution (h×v): 5536×3692 Pixel;
- Optical Size: 13.286 × 8.861 mm;
- Shutter: Rolling shutter;
- Sensor size: 1 inch;
- Pixel: 20.40 MegaPixel;
- Pixel size: 2.4 μm;
- ADC: 12 bit;
- Color depth (camera): 12 bit;
- Binning horizontal: increased frame rate;
- Binning vertical: increased frame rate;
- Binning factor: 2;
- Exposure time (minimum - maximum): 0.053ms – 814ms;
- Power consumption: 1.8W – 3.5W;
- Image memory: 128 MB;
- IP code: IP30;
- Device temperature during operation: 0? - 55?/32?- 131?
- Mass: 49g;
- Lens Mount: C-Mount;
5. Other functions: Calibration in advance, PnP, CE certification, FCC certification, UL certification.
- Root images analysis software
- The root images analysis software designed for flushed plant root system are as follow:
- DIRT ,Root Trace, RootNav, SmartRoot, RhizoChamberMonitor, WinRhizo Tron.
