BeWa - Irrigation Gully

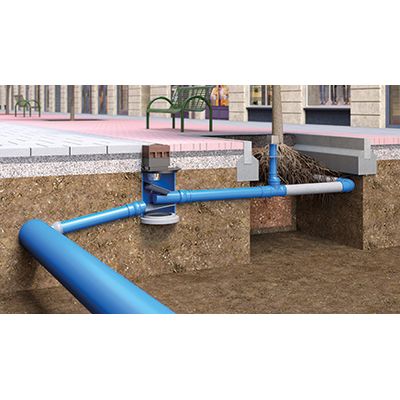

BeWa® is the new irrigation gully made by Funke Kunststoffe GmbH for the passive irrigation of tree pits. The Funke BeWa® enables the use of surface water for the irrigation of trees. The special design allows switching between summer and winter operation. In summer operation the water is drained to the tree pit. In case of heavy rain fall events, excessive water is drained into the sewer system. The winter operation enables all surface water to be drained into the sewer system. This protects the tree from water that is polluted with de-icing road salt. Therefore, the connection to the tree can be blocked with a guiding element in winter operation. Switching between summer and winter mode is done by simply rotating the guiding element by 180°. For this purpose, the guiding element is repositioned using a hook and eye system.
- Summer operation for passive tree irrigation
- Winter operation to protect vegetation from water that is polluted with de-icing salt
- Movable guiding element for easy maintenance
- Cast Iron cover slab adjustable in transverse and longitudinal direction
- Long service life
- Resistant to corrosion and de-icing salt
- Two adjustable outlets (0 - 11°)
- Load class D400 / SLW 60
Product name:
BeWa® Irrigation Gully
Material:
Cast iron/ PVC-U/ concrete
Installation guideline:
according to EN 1610 or manufacturer`s specifications
Nominal connection diameter:
DN/OD 160 (standard)
DN/OD 200 (upon request)
Gully pot design:
Dry drain (standard)
Silt trap gully pot (upon request)
Area of application:
Drainage of surface water from traffic areas (<300 ADT) with the option to irrigate urban tree pits
Load class:
D400
Scope of delivery:
- BeWa® Irrigation Gully Pot Set (Art. No.: 2001550021, Gully Pot, Vario-Sockets)
- Order with Funke Gully Set (Art. No.: 2001550021, Concrete Base Plate, Cast Iron Cover Slab, Compensating Rings)
Accessories (source seperately, for support contact Funke):
Cast iron top, Class C250 or D400, 300 x 500 DIN EN 124 / DIN 1229
Sludge bucket D1 according to DIN 4052-4
Special features:
- Guide element for setting summer and winter operation (de-icing salt)
- Cast Iron cover slab adjustable in transverse and longitudinal direction: the longitudinal slope can be adjusted in 1.5% steps up to 12%, the transverse slope is 2.5% and can be increased in steps up to 6% with compensation rings
- No damage-prone mortar joint required
- Load is transferred via the plastic base (no concrete surrounding required)
- Fine adjustment of height and slope using fiber-reinforced compensation rings
- Can be combined with commercially available cast attachments DIN EN 124 / DIN 1229 for drains DIN EN 4052 (contact Funke for support)
- Very short installation time
- Each component weighs only up to 25 kg
- Long service life, less maintenance, sustainable
- Resistant to corrosion and de-icing salt
- Comes with adjustable sockets 0-11°
