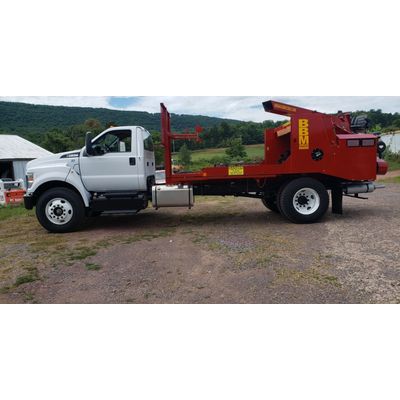

Material Innovations - Model BBM 160 -Big Bale Mulcher
The BBM 160 is a smaller version of our BBM 200. This machine also only requires a two man crew and can discharge straw 100 feet in still air just like the BBM 200. The BBM 160 utilizes a gas engine instead of the Tier 4 diesel engine. It does not require a CDL to drive the truck because even when the machine is loaded with material it is below the 26,000lb weight limit. Stored Bale Capacity: up to 4000 lbs. Deck can be loaded with 3×3 and 3×4 bales. 4×4 bales and round bales are not compatible with this machine.
Most popular related searches
- Engine: Ford Gas V8 6.2 Liter 160 Hp with 11” double disc PTO clutch.
- Engine Control: Electronic control with self-diagnostics. Automatic shutdown for low oil pressure or high water temperature.
- Fuel & Battery: One truck battery is used and a separate saddle tank is available.
- Blower: 32” diameter, single plane dynamically balanced, six blade fan rotating at 2200 rpm.
- Range: Up to 100 feet in still air
- Conveyor Feed: 8’5” wide by 9’5″ long hydraulically powered conveyor bed that moves at 0 to 3 feet per minute.
- Beater Bar: One 8’ by 24” pipe that is dual plane dynamically balanced. The bar is driven by two hydraulic motors at 200 rpm.
- Discharge Chute: Mounted on a ball bearing with 220 degrees of rotation and 70 degrees of hydraulically driven vertical travel.
- Frame: Heavy duty 8” channel.
- Operator Station: Adjustable padded seat with seat belt mounted on discharge chute. Controls include: beater bar, conveyor bed, PTO clutch, engine rpm, engine emergency shutdown, beater bar jam indicator light, and horn.
- Operator Safety: Emergency shutdown button and all controls are within easy operator reach. All spinning objects are properly shielded.
- Drives: Blower fan is belt driven. Conveyor bed, beater bar, and engine cooling fan are all hydraulically driven.
- Weight: 7,000 lbs
- Length: 16’6″
- Width: 8’5”
- Height: 9’
- Frame Length: 16.5′ to 17′
- Single Axel 12′ from back of cab.
- Maximum Weight: 14,000 lbs
- GVWR: 26,000 lbs
