Wellboat - Channel Counter

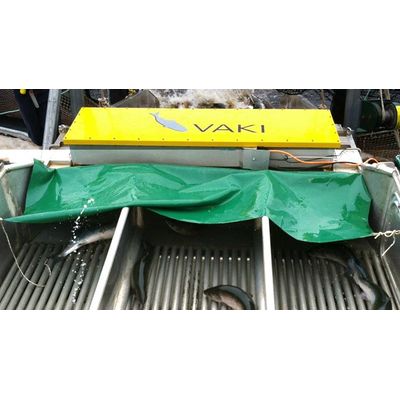

The Channel Counter is particularly useful during splitting, grading operations or lice treatment, as it provides critical data on the number of fish in each size group. This data allows commercial aquaculture operators to gain key insights upon which they can base ongoing feed planning. The Channel Counter also provides a documented counting report and it records images of the actual count for future validation. The Channel Counter is ideal for accurate counting and size estimation of large numbers of live fish from 50g upwards. The Channel Counter has been designed to accurately count at the high capacities achieved by modern fish pumps and fish transport systems on wellboats. It is the best choice for obtaining reliable and verifiable stock information when splitting, grading and harvesting.
The B-Type
The B-type is used when it is not required to lead the fish into a pipe after counting. Commonly used on barges when fish are being pumped directly between cages.
The Y-Type
The Y-type is used on large grading machines when the fish are transported from the grader in a pipe after counting. The pipe diameter can be up to 20″.
FEATURES
- Accurate counting of fish from 50g
- In special configuration it is possible to count smolt
- Counting reports for every delivery
- Images are stored for verification of the count
- Measurement of average weight & size distribution
- Counting width from 1300 – 3000mm depending on type
- Excessive dewatering
- Full control from the bridge
- Gentle handling of fish
- Can be connected to VAKI Cloud
- Can be connected to VAKI SmartFlow
MAINTENANCE
- Trained service agents for installation
- Repair service at each main area
- Critical Spares available with agents
- Routine Service Contracts
- Updated Service / Operating Manual
- All units fully tested for hardware & software performance before delivery
- 2 years Warranty guarantee
- Customer service & back up
SPECIFICATIONS
- 3 standard widths
- 3,0m counting width
- 1,9m counting width
- 1,3m counting width
- Size of fish: 50g – 12kg
- Capacity range: is wide depending on application ( 50-300 ton per hour).
- Accuracy: over 98%
FISH SPIECIES
- The Wellboat Channel Counter is well suited for all kind of fish such as: salmon, cod, turbot, halibut, trout, tilapia, sea bass and bream.
