Gessner - Model HR1200 - Chisel Ploughs

HR1200 Chisel Plough

• HR1200 frames range from 10ft (3.0m) to 54ft (16.4m).
• The specially designed multi-section frame is available in a single-fold configuration or as a rigid, trailing frame depending on machine width and application requirements.
• Specially designed heavy duty hydraulic release tynes featuring high-quality jump cylinders.
• Hydraulic phasing depth wheels varying in size depending on frame configuration:
• 15R x 22.5 Super Singles on 4.8m Centre Sections;
• 49 x 17 x 30 Aero Tyres on 6.1m Centre Sections;
• All wings feature 10.00 x 20 Truck Tyres.
• Safety chains feature on 42ft frame configurations and above.

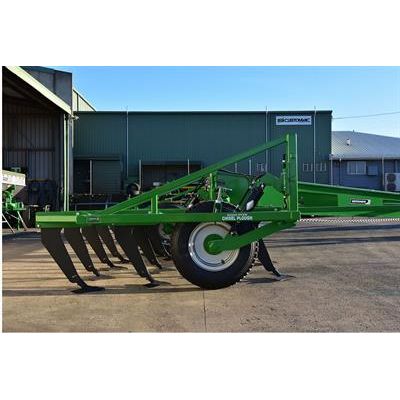

Rigid Tyne Chisel Plough

• Rigid tyne frames range from 10ft (3.0m) to 42ft (12.8m)
• The specially designed multi-section frame is available in a single-fold hydraulic configuration for machines 22ft and above. Alternatively rigid, trailing frame configurations are available from 10ft to 28ft depending on application requirements.
• Various wheel configurations are available depending on frame width:
• 7.50 x 16 Compactor Tyres on 10ft – 12ft machines;
• 10.00 x 16 x 8 Ply Stabiliser Tyres on 16ft machines;
• 15R x 22.5 Super Single Tyres on 20ft – 28ft machines;
• All wings feature 10.00 x 20 Truck Tyres.
• Safety Chains for 34ft frame configurations and above.

Optional Extras for Shank Configuration:

• 250mm Penetration Sweeps
• 406mm Penetration Sweeps
• 75mm x 20mm Reversible Chisel Points
• 3-1/2” x 5/8” Plough Bolt & Nut
• 2-1/2” x 5/8” Plough Bolt & Nut

The combination of heavy-duty frame and quality, field-proven units provides unmatched durability and longevity in tough tillage conditions.
