Kunz - Chisel Plow / Cultivator

Kunz - Chisel Plow / Cultivator

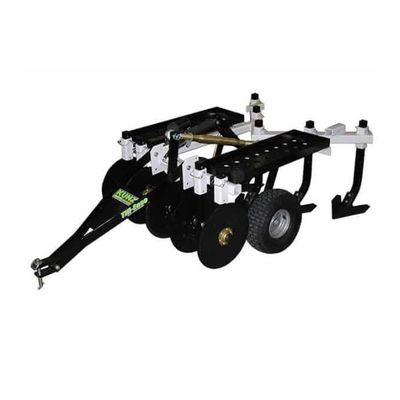

43″ wide Chisel Plow / Cultivator with rigid shanks, cutting coulters and electric lift. Very aggressive top of the line ATV tillage tool capable of deep tillage work.

Most popular related searches

chisel plough

plow cultivator

field cultivator sweep

Features (specs, highlights, etc)

43″ Tillage Width
Electric Lift with ATV Operator Controls
5 Front Cutting Coulters
Rigid Shanks for Better Ground Penetration
Till up to 6″ Deep
Narrow Chisel Points & 9″ Wide Field Cultivator Sweeps Included
Pull with ATV’s, UTV’s and Small Tractors

Tillage Tool Type : Yes (With Operator Controls)
Number of Cutting Coulters : 5
Cutting Coulter Size : 13.5″ Dia. (Plain Straight Style)(Agricultural Quality)
Number of Shanks : 5
Shank Type : Rigid 1-3/8″ Square
Adjustable and Quick Remove Shanks : Yes
Maximum Depth : 6″
Cultivator Sweep Size : 9″ Wide (1-3/4″ Bolt Spacing, 3/8″ Bolt Dia. )(Agricultural Quality)
Reversible Point Chisel Sweep Size : 2″ Wide (1-3/4″ Bolt Spacing, 3/8″ Bolt Dia. )(Agricultural Quality)
Cutting Width : 43″
Tongue Adjustment Method : Top Link Connected to Lift Mechanism
Tongue Hitch Method : Quick Remove Pin
Pneumatic Tire : 15/600×6, 4 Ply Tubeless
Attachment Receivers : Yes
Weight Racks : Yes
Weight : 330 lbs (Without Added Weight)
Warranty : 1 Year Non-Commercial
2021 Suggested List Price (U.S. Dollars) :
Base Model : $2,395
Optional Drag Harrow : $315
Optional Turning Shovel Kit : $80
