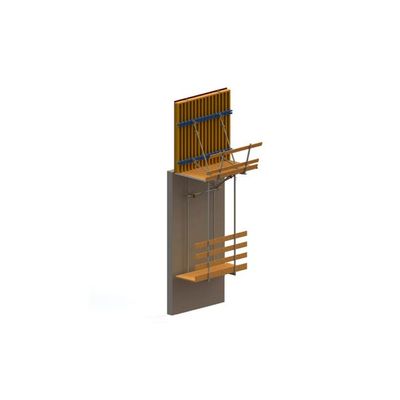

Variant - Model CWP - Climbing Working Platform
CWP system is a reliable combination of Variant’s folding working platforms and framed or timer-beam formwork systems for use as a crane-jumped formwork on sites where the formwork has to be repositioned upwards in several casting sections, and there is no need for retractable formwork. CWP can also be used as a roof and edge protection system.
Most popular related searches
Load-bearing capacity:
- Loads on the suspension point: Horizontal load - 36 kN, Vertical load - 26 kN;
- Live load per unit area 150 kg/m2 on folding and working platforms;
- Formwork height of up to 3.75 m.
Cost-effective:
- Less crane-time is needed, as the folding platform and formwork are moved up in one single lift;
- Wide choice of formwork, as the platform can be combined with either framed or timber-beam formwork.
Easy handling and planning:
- Small number of different parts is used;
- Time and cost-effective owing to use of preassembled elements;
- The formwork can be plumbed and aligned very quickly and accurately in all directions, with a simple adjustment mechanism.
Safe use:
- Safe working conditions provided by fully railed-in 1.80 m wide working platform;
- Dependable suspension points, with certified suspension cone and lift-out guard for the brackets.
