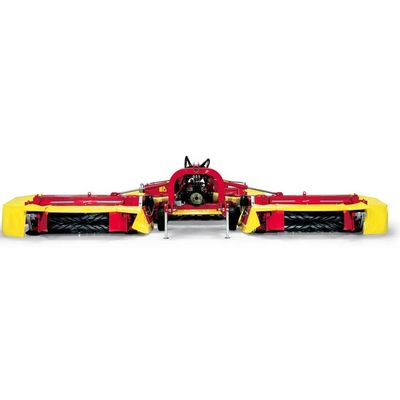

Bellon - Model COMBI-D680 and D680GM -Combined Disc Mower

The strength of the combined mowers lies in the possibility of mowing over a width of up to 6.8 m, with a consequent high production rate.
To increase the quality of the fodder, the COMBI-D680GM model is provided with rubber roller conditioner, which reduces drying and haymaking times.

For road transport of your mower, the side elements are lifted by means of hydraulic pistons. Combined disc mowers are ideal for hilly or undulating ground. This type of mowing bar with rounded flattened shape, in which the blades rotate close to the upper edge and contra-rotating blade, prevents accumulation of soil between the hay mown, reducing impurities in the fodder. In addition it ensures uniform distribution of the load on the ground and optimal protection of the soil and turf.

Custom-designed hydraulic force.

• The hydraulic and electronic control unit ensures that the pressure on the ground is constant and that the mowing equipment floats, reducing wear of the parts subject to friction.
• The control unit operates the controls for opening and closing the elements for road transport or mowing. The hydraulic system lifts the mower from the ground by 35° and facilitates manoeuvring operations.
• The hydraulic control unit has been constructed in compliance with the current European regulations, for example it is provided with check valve for control of the oil flow.
• Via the two pressure gauges, the correct pressure necessary to guarantee floating of the three mowing elements can be monitored and the inlet pressure for optimal management of the opening and closing movements regulated.
