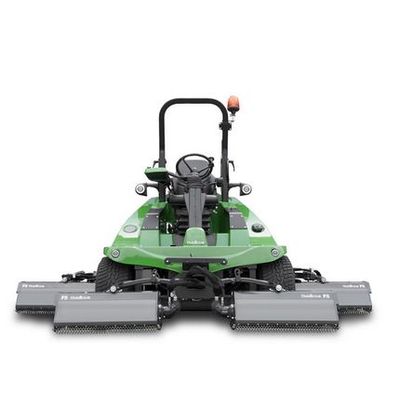

Spearhead - Model F5 -Commercial Flail Mower
Spearhead is proud to introduce the Roberine 5-series F5 flail mower. These machines are the result of many years of experience in design and development of mowing machines. In addition, the most advanced technology has been used, not only in terms of engine and drive engineering, but also in terms of mowing technology.
The Roberine F5 is an all-rounder. The flail mower has a robust flail unit, with an effective design for perfect mowing results. The Roberine F5 can be used for a wide range of purposes, including parks, sports fields, grass verges and riverbanks.
The latest insights into drive and engine technology were considered when developing the 5 series. The combination between hydrostatic drive and permanent 4WD maximizes grip on all surfaces. The robust rear axle follows the surface and thus offers a lot of stability. The electronic weight transfer system helps to realize better results on soft verges. Roberine offers much more than just perfect mowing results, it also features an attractive price tag.
- Engine development for the future
- Hydrostatic 4-wheel drive
- Very low fuel consumption
- Low maintenance costs
- Perfect price/quality ratio
- Engine: 4 cylinder water cooled Yanmar Turbo Diesel with Intercooler 46kW (63 hp) at 2600 rpm
- Capacity: 2091cc
- Fuel tank: 70 litres according to daily consumption figures
- Drive: Automatic hydrostatic four-wheel drive (drive by wire)
- Mowing system:Two hydraulic axial piston pumps for the mower units
- Number of mowing units: 5 independently suspended flail units fitted with hydraulic plunger motors
- Mowing unit configuration: Flail unit with 12 flails, Ø 25 cm and roller Ø 76 mm
- Cutting width: Variable from 75 – 345 cm
- Height settings: 25 mm – 85 mm
- Weight transfer system: Electrically operated for more traction by weight transfer of mowing units on the wheels
- Speed: Mowing: 12 km/h / Transport: 25 km/h
- Seat: Standard fully adjustable Grammer comfort air-suspended seat with automatic weight adjustment and command arm
- Dashbord warning lights: Digital display of all necessary control and warning functions, Ergonomically placed in the Command arm
- Indicators: Fuel-level gauge, hydraulic-oil level gauge, digital hour counter
- Length: 310cm
- Wheel base: 160cm
- Transport width: 190cm
- Height: Cabine version 226cm, ROPS version 231cm
- Weight with ROPS: Rops version including flails units 1960 kg
- Weight with cabin: Cabine version including flails units 2168 kg
- Certifications: CE Certified according to NEN ISO EN5395. Stone impact certification for flail units ISO 17101-2. ROPS according to ISO21299.
