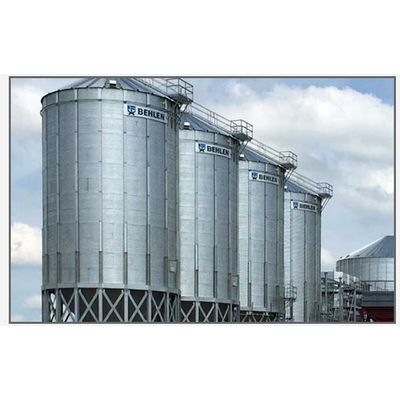

Behlen - Model M5 - M11 -Commercial Hopper Tank
Behlen roofs are manufacturer certified to withstand 40 lbs./sq. ft. ground snow load. Gentle 30° roof pitch allows for optimum filling. Roof panels are 3-1/2" high with four stair steps on both sides. This provides outstanding strength against snow, wind, and other loads. Roof panels are roll-formed for a precision fit.
ROOF DESIGNED WITH UNIQUE FEATURES
Continuous angle connectors at the eave are superior to clip systems and provide the option of an open or closed eave.
UNIQUELY DESIGNED WALL SYSTEMS
The sidewall contains four rows of high-strength 3/8" (grade 8.2) bolts per vertical seam which means extra strength and rigidity.
Unique trapezoidal wall panels have been computerized to provide outstanding strength. Their unique design permits bolting of flat surface to flat surface for a tighter, more waterproof connection.
STRUCTURAL I-BEAMSPROVIDES THE BACKBONE FOR THE SUPPORT SYSTEM
Stiffeners fasten to ridge compression members directly above the sturdy I-beam legs. These legs are secured by a heavy X-bracing system. This configuration is one of the strongest available.
STIFFENERSOFFER EXCEPTIONAL LOAD CARRYING CAPABILITIES
Superior design of bearing plate between stiffeners assures a continuous vertical load transfer with a simple bolted conneciton. Strong galvanized, hat-shaped wall stiffeners provide excellent resistance to vertical grain loads and wind.
COMPRESSION BEAMSMOST CRITICAL AREA OF ANY HOPPER TANK
Behlen commercial hoppers are equipped with massive, precision welded beams to provide a secure connection between the wall sheets, structural legs, and hopper panels. These compression members have been designed to rigorous standards to ensure a lifetime of trouble-free operation.
