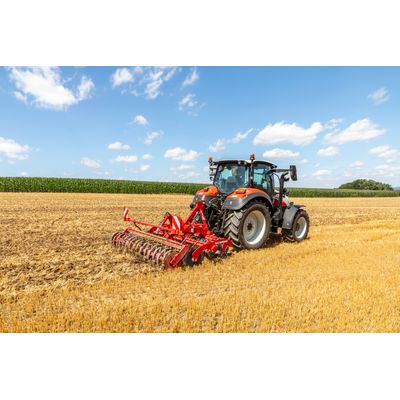

HORSCH Joker - Model CT -Compact Disc Harrow
The HORSCH Joker CT is a compact disc harrow that is ideal for stubble cultivation, the incorporation of catch crops, seedbed preparation or the incorporation of organic fertilizer. The HORSCH Joker CT is a compact disc harrow available in 11.5` working width for 3-point hitch systems. It is designed for lighter tasks and smaller operations, providing a more compact solution for those who do not require the wider range and heavier build of the Joker MT. It stands out for its robust construction and easy handling. Its range of applications includes initial shallow stubble cultivation at depths of 2`` to 3``, seedbed preparation with a high proportion of fine soil, and the incorporation of organic fertilizers such as manure, slurry, or green manure.
Compact disc harrow with high clearance as two discs are fitted on one arm with rubber torsion suspension
- Produces a high proportion of fine soil in the germination zone
- Efficient soil reconsolidation in the germination zone
- Low susceptibility to clogging with long crop residues and shallow tillage
- Maximum clearance with paired arrangement of disc elements
- Excellent penetration due to aggressively serrated discs and high machine weight
It is also well-suited for breaking up and chopping cover crops. With a wide selection of packer options, optimal soil reconsolidation can be achieved for all conditions. This is particularly important for stubble cultivation and seedbed preparation. Thanks to its high clearance, achieved by the arrangement of two discs on one arm, the Joker CT is also excellent for incorporating long crop residues. With very high working speeds of up to 12 mph, it offers high acreage performance with low draft requirements. As with any disc harrow, the quality of work with the Joker improves with increased working speed.
Due to the aggressive angle of the discs with a serrated profile, the Joker has excellent penetration into the soil. If there are still issues with soil penetration, it is possible to equip the machine with additional weights to improve entry. In summary, the HORSCH Joker is a compact disc harrow that is perfect for shallow tillage, stubble cultivation, incorporating organic matter, or seedbed preparation.
- Disc serrated Ø 20"
- Excellent penetration of the soil
- Intensive mixing
- Different hardness grades in one disc
The serrated disc with a diameter of 20`` can be used in different situations. For working depths up to 6``, it reliably penetrates the soil. The serrated cutaways allow for an excellent incorporation of high amounts of straw. The serrated profile almost completely prevents the discs from stopping even in very light soils. Small disc diameter for high rotational speeds and a high production of fine soil.
- Shallow and fast stubble cultivation to stimulate germination of volunteer grains, interrupt capillarity, and initiate the mixing of crop residues
- Effective seedbed preparation after plowing and cultivating
- Clog-free incorporation of challenging crop residues (cover crops, corn)
- Trouble-free incorporation of organic fertilizers (manure, slurry, green manure)
- Seeding of cover crops in combination with the MiniDrill
- Disc serrated Ø 22.5"
- Excellent penetration of the soil
- Intensive mixing
- Different hardness grades in one disc
The serrated disc with a diameter of 22.5" can be used in different situations. For working depths up to 6", it reliably penetrates the soil. High amounts of straw are well mixed into the soil by the serrated profile. The serrated profile almost completely prevents the discs from stopping even in very light soils.
- Shallow and fast stubble cultivation to stimulate germination of volunteer grains, interrupt capillarity, and initiate the mixing of crop residues
- Effective seedbed preparation after plowing and cultivating
- Clog-free incorporation of challenging crop residues (cover crops, corn)
- Trouble-free incorporation of organic fertilizers (manure, slurry, green manure)
- Seeding of cover crops in combination with the MiniDrill
- Working depths up to 2``
- Good production of fine soil
- Crushing of cover or catch crops
The Vortex disc is ideal for a shallow use up to 3 inch. Due to the large contact area, a lot of material is crushed but is only mixed in to a limited extent.
- Shallow and fast stubble cultivation to stimulate germination of volunteer grains, interrupt capillarity, and initiate the mixing of crop residues
- Effective seedbed preparation after plowing and cultivating
- Clog-free incorporation of challenging crop residues (cover crops, corn)
- Trouble-free incorporation of organic fertilizers (manure, slurry, green manure)
- Seeding of cover crops in combination with the MiniDrill
- High contact area due to 2.7`` wide ring elements
- Additionally mixes in organic material
- Can be converted to a winter packer
- Weight per m working width: 265 lbs
The RingFlex packer impresses due to its excellent load-carrying capacity on light and medium soils. Moreover, it guarantees a good consolidation. Depending on the conditions, it can also be used as a winter packer by removing individual rings.
- Shallow and fast stubble cultivation to stimulate germination of volunteer grains, interrupt capillarity, and initiate the mixing of crop residues
- Effective seedbed preparation after plowing and cultivating
- Clog-free incorporation of challenging crop residues (cover crops, corn)
- Trouble-free incorporation of organic fertilizers (manure, slurry, green manure)
- Seeding of cover crops in combination with the MiniDrill
The RollFlex packer ensures a high reliability on changing soils even in wet conditions. Due to the deep consolidation, loose soil is compacted, clods are crushed and an optimum environment with an optimum ratio of water-bearing and air-ducting pores are created.
- Shallow and fast stubble cultivation to stimulate germination of volunteer grains, interrupt capillarity, and initiate the mixing of crop residues
- Effective seedbed preparation after plowing and cultivating
- Clog-free incorporation of challenging crop residues (cover crops, corn)
- Trouble-free incorporation of organic fertilizers (manure, slurry, green manure)
- Seeding of cover crops in combination with the MiniDrill
