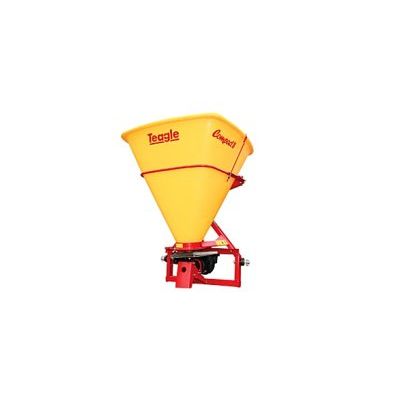

Teagle - Model 8 - Compact Fertiliser Spreader
Our Spread Pattern has been developed so that when two adjacent bouts overlap, the total amount spread is even across the full bout width. With our system it is straightforward to drive at the correct bout width by ensuring that fertiliser is thrown just as far as the last set of tractor wheelings. No rotors to change, vanes to adjust or spread widths to set. Simply adjust the spread rate as described in the instruction book and you are ready to spread.
Arc Control Plate
Adjustment of the arc control plate centralises the spread pattern. This plate can be easily removed for cleaning.
Powder / Salt Agitator
The Compact 8 is ideally suited to difficult materials due to the steeply sloping sides of the hopper. Agitation of these materials is recommended using our Powder/Salt agitator.
- Implement Linkage Cat. 1
- Capacity (Ltr.) 234
- Loading Height 120cm
- Width 75cm
- Length 90cm
- Unladen Weight 56kg
- Bout Width Up to 8m
