Global Composting Solutions Ltd (HotRot)

HotrotModel 1811 -Composting Unit

SHARE

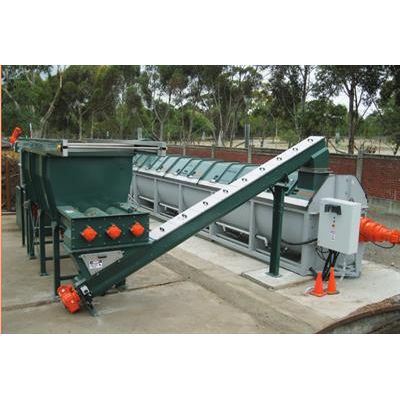

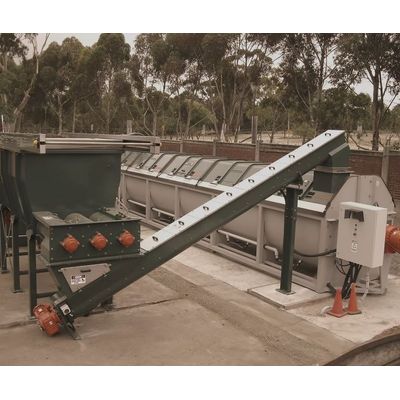

The HotRot 1811 unit consists of a steel/stainless steel u-shaped insulated hull, capped with fibreglass insulated lids. A stainless steel central tine-bearing shaft runs longitudinally through the u-shaped trough. This shaft is rotated periodically and provides mixing and aids aeration. Aeration is further enhanced by periodic air injection using a low-pressure system mounted external to the hull. This system is designed for situations where staff are undertaking other activities in the same general area (i.e. a waste management facility at a remote camp) or where a lower throughput is acceptable. The periodic feeding resulting from the use of a bin-lifter results in a reduced overall throughput.

Most popular related searches
TYPICAL APPLICATIONS

The HotRot 1811 is suitable for on-site applications (commercial food, mining camps, zoos, poultry mortalities) or smaller municipal transfer stations and sewage treatment plants.

FEED SYSTEM

A feed hopper enables 24/7 unattended operation. Multiple units can be installed in parallel with individual or larger common feed hoppers.

DESIGN LIFE *

10 years.

*Excluding maintenance and wear items. Design and specifications may change without notice at any time due to ongoing research & development.

  • Length overall 12.80m (42’ 0”)
  • Width overall 2.17m (7’ 2”)
  • Height overall 2.33m (7’ 8”)
  • Main drive 5.5kW three-phase
  • Energy requirement 60-70 kW/day
  • Nominal capacity up to 2.5 tonnes per day with feed hopper
