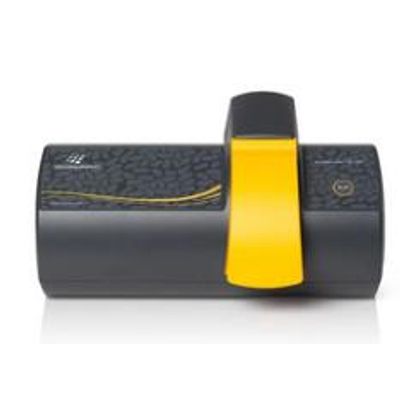

NucleoCounter - Model NC-202 - Consistent Cell Counter

The DebrisIndex™ feature measures culture debris build-up. Debris negatively affects downstream filtering and purifications steps, so directly measuring debris facilitates better process development parameters. Learn more about DebrisIndex™.

The NC-View™ software is compatible with 21 CFR Part 11/GMP guidelines and can be integrated into your clinical workflow.

The disposable Via2-Cassette™ combined with the NucleoCounter® NC-202™ automated cell counter create a closed cell counting system, helping you stay protected when handling samples. No pipettes, no exposure to (toxic) reagents, and minimal clean-up make the NucleoCounter® system a safe option.

Any sample. Any user. Anywhere.

• Consistent results across instruments, users and sites
• Use with Via2-Cassette™ to eliminate human error
• Monitor production runs with DebrisIndex™
• Increased cell counting range: No more dilutions
• Scalable system with 21 CFR Part 11/GMP-ready software

• Application type(s) Cell count & viability analysis
• Cell type(s) Mammalian cells incl. cell lines & primary cells, whole blood samples, leukopaks, PBMCs, MSCs, T cells; yeast and insect cells, CEFs; cells on microcarriers, in aggregate or 3D cultures
• Software NC-View™
• Consumable(s) Via2-Cassette™
• Capacity (Analysis time) 30 seconds
• Analysis volume 1.35 μl (volume-calibrated Via2-Cassette™)
• Optimal range 5×104 to 1×107 cells/ml
• Staining dye(s) Acridine orange (AO) and DAPI
• Loading volume 60 μl
• Excitation 2 LED light sources with peak wavelengths at 365 nm and 505 nm
• Emission A single dual-band emission filter: 410 – 460 nm and 540 – 650 nm
• Optics Lens with ×2.1 magnification, 2/3” CMOS camera
• Data output Images, tables
• Data export formats .cm, .csv, .pdf
• Product number 900-2020
• Size 38 × 26 × 22 cm (W × H × D)
• Weight 4.9 kg (10.8 lb)
• Supply Voltage 24VDC (100-240V ~ 50-60Hz)
