Spinder - Model PE - Control Panels for Manure Scrapers

• the tensile force is measured continuously
• manual or automatic setting of maximum traction
• various values for maximum traction can be set for forward or reverse movement.
• using the integrated timer, the starting times can be set as required.
• automatic start at the set starting time or by running a frost programme by way of a temperature sensor.
• connection option for external controls and fault signal (siren)

The control panels are suitable for both Spinder PE rope-driven slatted floor scrapers and combi-scrapers.

Control panel types

Basic - ESB210

• suitable for 1 system, consisting of 2 drive units
• turned off after exceeding the maximum pulling power
• learning programme
• automatic adjustment to power surges in the electricity network
• manual or fully automatic
• 2 scraper programmes
• adjustable stand-by position
• 2 frost programmes
• illuminated display

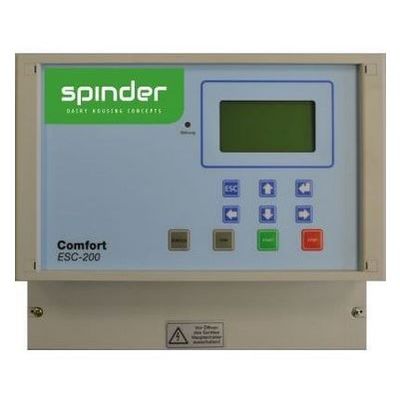

Comfort - ESC210
Has all the features of Basic - ESB210, with the following extras:

• animal and obstacle detection
• possibility for central discharge
• possibility of gradual movement
• connection for the controls of an external relay

Premium - ESC300 with remote control
Has all the features of Basic - ESB210, with the following extras:

• suitable for up to 6 systems with 2 drive units each
• remote control with a range of up to 300 metres
• charging terminal for remote control
• individually programming of each manure removal system
• up to 24 starting times per 24-hour period
• 4 scraper programmes
• continuous registration of the entire operation
• log file exportable via SD card, read out e.g. in Excel
